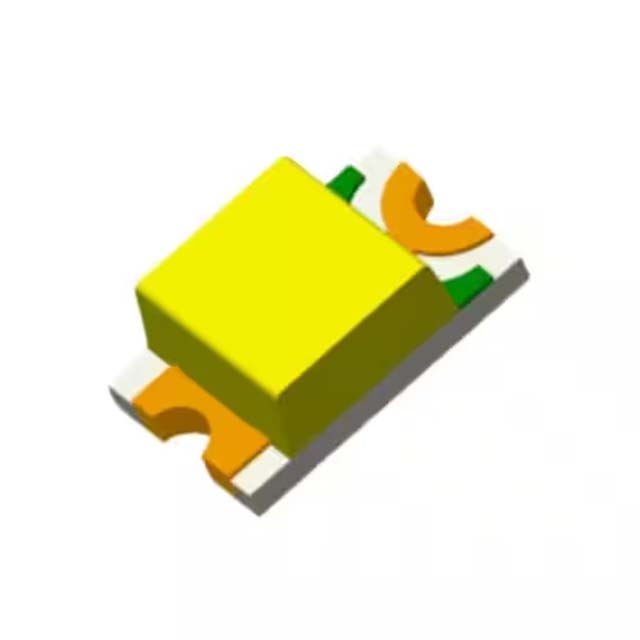

RF-WNB170DS-DD
ActiveRefond
LED WHITE 0805 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RF-WNB170DS-DD
ActiveRefond
LED WHITE 0805 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RF-WNB170DS-DD |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Size [x] | 1.4 mm |
| Lens Size [y] | 1.25 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 650 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 0805 |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) | 3.05 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.20 | |
| 10 | $ 0.11 | |||
| 100 | $ 0.05 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.03 | |||
| 2000 | $ 0.03 | |||
| Digi-Reel® | 1 | $ 0.20 | ||
| 10 | $ 0.11 | |||
| 100 | $ 0.05 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.03 | |||
| 2000 | $ 0.03 | |||
| Tape & Reel (TR) | 4000 | $ 0.03 | ||
| 8000 | $ 0.03 | |||
| 12000 | $ 0.03 | |||
| 28000 | $ 0.02 | |||
| 100000 | $ 0.02 | |||
Description
General part information
RF-WNB170DS-DD
White LED Indication - Discrete 3.05V 0805 (2012 Metric)
