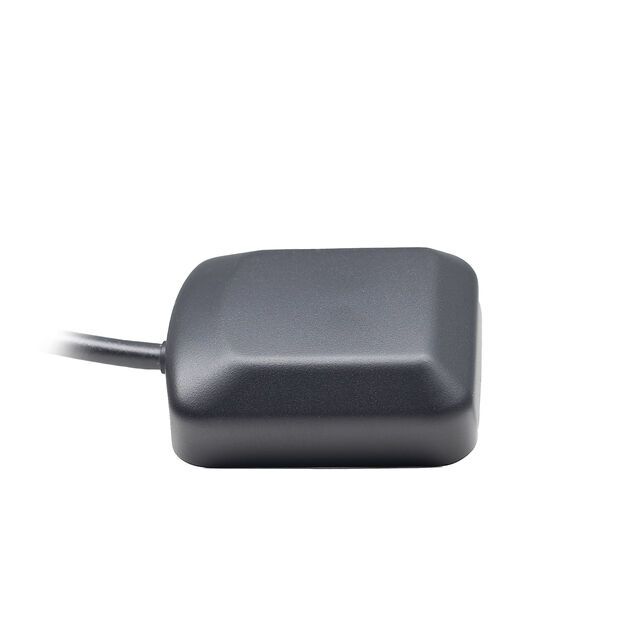

YOP-5270-ZZ01-YM
ActiveYokowo Manufacturing of America, LLC.
GNSS ANTENNA L1 (MAGNET)
Deep-Dive with AI
Search across all available documentation for this part.
YOP-5270-ZZ01-YM
ActiveYokowo Manufacturing of America, LLC.
GNSS ANTENNA L1 (MAGNET)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YOP-5270-ZZ01-YM |
|---|---|
| Applications | QZSS, Galileo, GLONASS, GPS, Beidou |
| Features | 5 m |
| Frequency (Center/Band) | 1.575 GHz, 1.602 GHz, 1.561 GHz |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.606 GHz |
| Frequency Range [Min] | 1.559 GHz |
| Gain | 23.7 dBi, 23.8 dBi, 24.2 dBi |
| Grade | Automotive |
| Height (Max) | 11.7 mm |
| Height (Max) [Max] | 0.46 in |
| Mounting Type | Magnetic |
| Number of Bands | 3 |
| Return Loss | -17.7 dB, -15.8 dB |
| RF Family/Standard | Navigation |
| Termination | SMA Male (1) |
| VSWR | 1.4, 1.3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 20.00 | |
Description
General part information
YOP-5270-ZZ01-YM
RF ANTENNA BeiDou, Galileo, GLONASS, GPS, QZSS Omni-Directional SMA Male (1) Magnetic
Documents
Technical documentation and resources
No documents available
