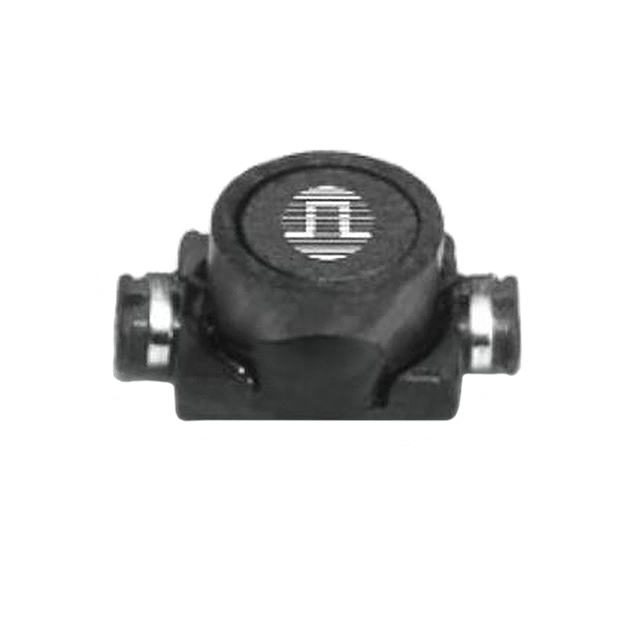

P1174.103NLT
ActivePulse Electronics
FIXED IND 10UH 800MA 73 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsSolder Reflow Profile
P1174.103NLT
ActivePulse Electronics
FIXED IND 10UH 800MA 73 MOHM SMD
Deep-Dive with AI
DocumentsSolder Reflow Profile
Technical Specifications
Parameters and characteristics for this part
| Specification | P1174.103NLT |
|---|---|
| Current - Saturation (Isat) | 800 mA |
| Current Rating (Amps) | 800 mA |
| Frequency - Self Resonant | 31 MHz |
| Height - Seated (Max) [Max] [z] | 2.79 mm |
| Height - Seated (Max) [Max] [z] | 0.11 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 6.73 mm |
| Size / Dimension [x] | 0.265 in |
| Size / Dimension [y] | 4.45 mm |
| Size / Dimension [y] | 0.175 in |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.88 | |
| 10 | $ 1.60 | |||
| 25 | $ 1.47 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.06 | |||
| 500 | $ 1.00 | |||
| 1000 | $ 0.94 | |||
| Digi-Reel® | 1 | $ 1.88 | ||
| 10 | $ 1.60 | |||
| 25 | $ 1.47 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.06 | |||
| 500 | $ 1.00 | |||
| 1000 | $ 0.94 | |||
| Tape & Reel (TR) | 2500 | $ 0.91 | ||
| 5000 | $ 0.88 | |||
Description
General part information
P1174.103NLT
10 µH Shielded Wirewound Inductor 800 mA 73mOhm Max Nonstandard
Documents
Technical documentation and resources
