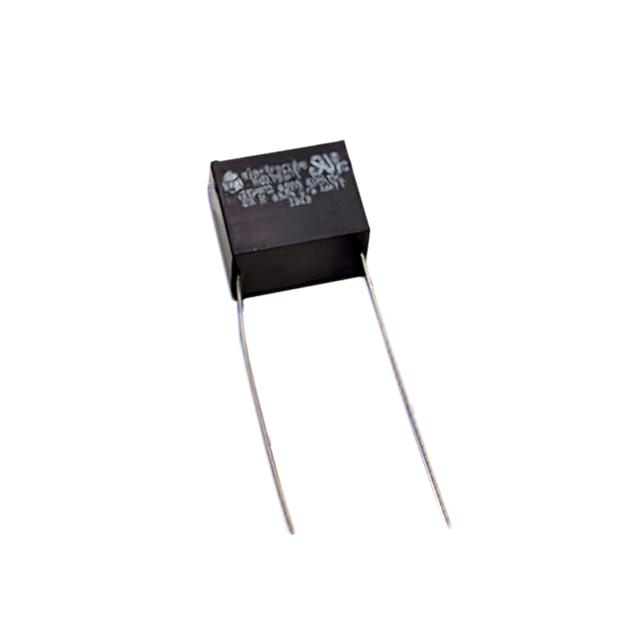

RG1781-3
ActiveElectrocube
FILTER RC 47OHM/1UF THROUGH HOLE
Deep-Dive with AI
Search across all available documentation for this part.
RG1781-3
ActiveElectrocube
FILTER RC 47OHM/1UF THROUGH HOLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RG1781-3 |
|---|---|
| Applications | General Purpose |
| ESD Protection | False |
| Filter Order | 1st |
| Height [z] | 19.81 mm |
| Height [z] | 0.78 " |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 1 in |
| Size / Dimension [y] | 12.7 mm |
| Size / Dimension [y] | 0.5 in |
| Technology | RC |
| Type | Low Pass |
| Values | 47 Ohms, 1 µF |
| Voltage - Rated | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 65.96 | |
Description
General part information
RG1781-3
RC EMI Filter 1st Order Low Pass 1 Channel R = 47Ohm, C = 1µF Radial
Documents
Technical documentation and resources
No documents available
