5001600
ActiveGES High Voltage
GB-MCS605
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5001600 |
|---|---|
| Cable Opening [diameter] | 0.063 in |
| Cable Opening [diameter] | 1.6 mm |
| Color | Silver |
| Connector Type | Receptacle, Female Pins |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 4.5 A |
| Features | High Voltage Connector |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Rear Side Nut |
| Number of Positions | 6 |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shielding | Shielded |
| Termination | Solder, Crimp |
| Voltage Rating | 5000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 56.49 | |
| 10 | $ 53.67 | |||
| 25 | $ 50.84 | |||
| 50 | $ 48.02 | |||
Description
General part information
5001600

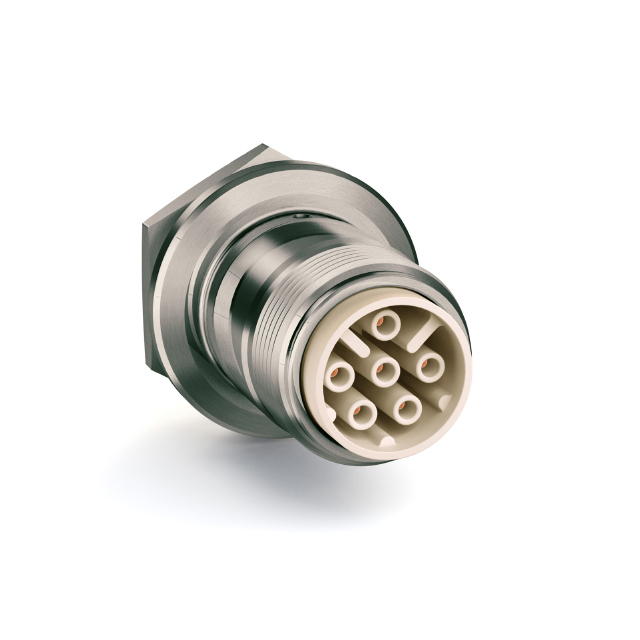

6 Position Circular Connector Receptacle, Female Pins Crimp, Solder
