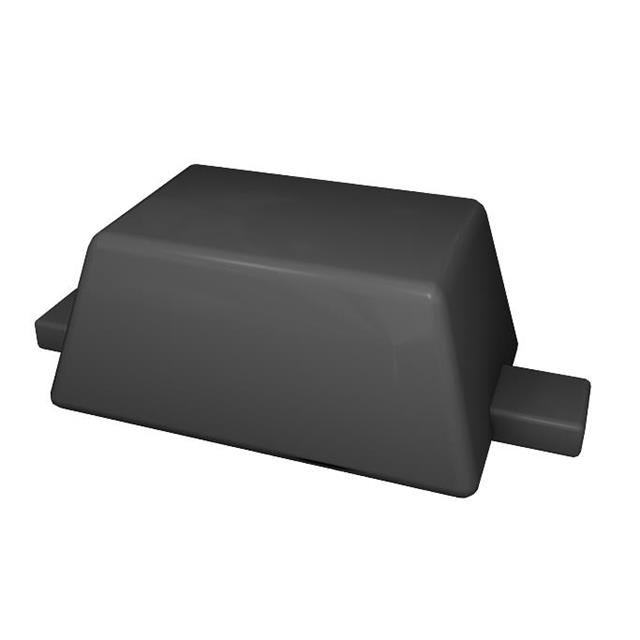

AZ4615-01L
ActiveAmazing
TVS DEVICE HIGH VOLTAGE 1-CH 15V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZ4615-01L
ActiveAmazing
TVS DEVICE HIGH VOLTAGE 1-CH 15V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ4615-01L |
|---|---|
| Applications | General |
| Bidirectional Channels [custom] | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-323, SC-76 |
| Power Line Protection | False |
| Supplier Device Package | SOD-323 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 17 V |
| Voltage - Reverse Standoff (Typ) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 10 | $ 0.35 | |
Description
General part information
AZ4615-01L
Clamp Ipp Tvs Diode Surface Mount SOD-323
