OPTAN-250K-BL
ActiveCrystal IS
250 NM; > 3 MW @ 100 MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OPTAN-250K-BL
ActiveCrystal IS
250 NM; > 3 MW @ 100 MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OPTAN-250K-BL |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -5 °C |
| Orientation | Top View |
| Package / Case | TO-39-3 Metal Can, TO-205AD |
| Type | Ultraviolet (UV) |
| Viewing Angle | 15 ° |
| Voltage - Forward (Vf) (Typ) | 10 V |
| Wavelength | 250 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 406.81 | |
| 10 | $ 363.00 | |||
Description
General part information
OPTAN-250K-BL

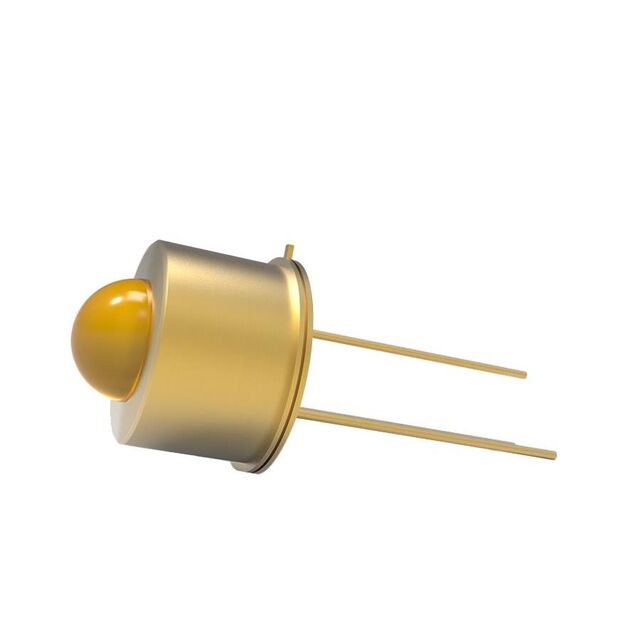

Ultraviolet (UV) Emitter 250nm (245nm ~ 255nm) 10V (Max) 100mA 15° TO-205AD, TO-39-3 Metal Can
Documents
Technical documentation and resources
