24204635-01
ActiveChogori Technologies Inc.

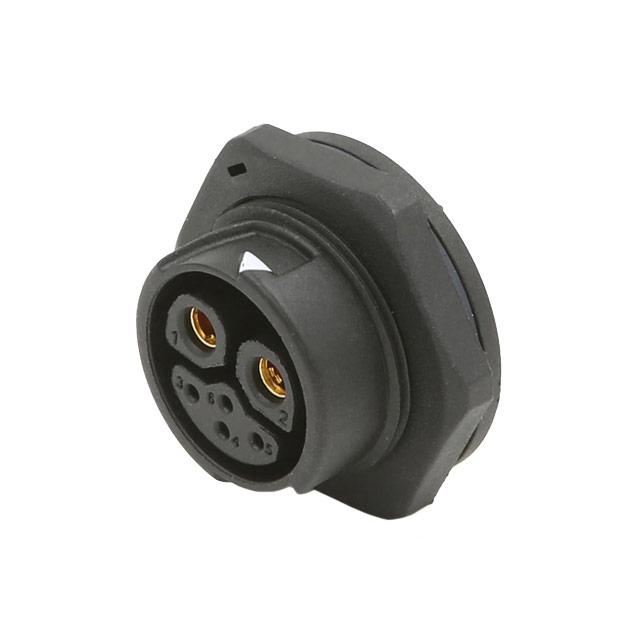

CONN RCPT FMALE 6POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
24204635-01
ActiveChogori Technologies Inc.
CONN RCPT FMALE 6POS SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 24204635-01 |
|---|---|
| Applications | Industrial, Marine, Lighting, Communication Systems |
| Color | Black, Blue |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass, Phosphor Bronze |
| Current Rating (Amps) | 5 A, 50 A |
| Fastening Type | Push-Twist |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions [custom] | 4 |
| Number of Positions [custom] | 6 |
| Number of Positions [custom] | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -45 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.19 | |
| 10 | $ 21.41 | |||
| 25 | $ 20.07 | |||
| 50 | $ 19.11 | |||
| 100 | $ 18.20 | |||
| 250 | $ 17.06 | |||
| 500 | $ 16.25 | |||
Description
General part information
24204635-01
6 (4 + 2 Power) Position Circular Connector Receptacle, Female Sockets Solder Cup
