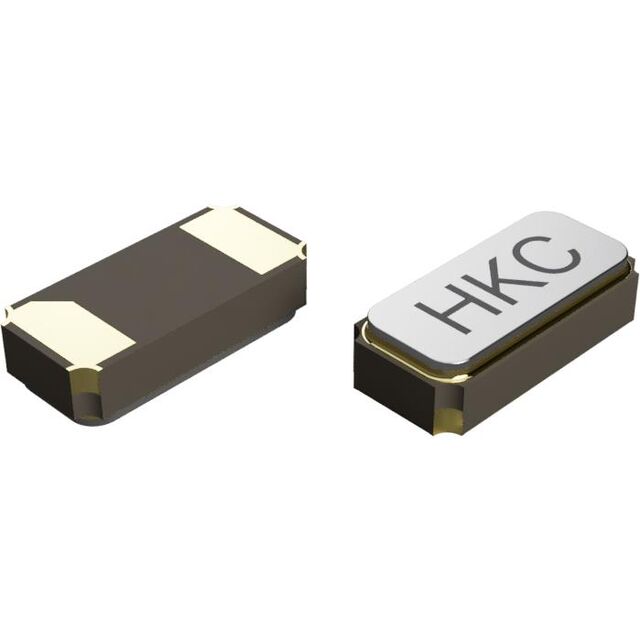

3215S23276BMDABDNTE-TR

Active

HKC

CRYSTAL: 32.768KHZ, 20PPM, 7P

Search across all available documentation for this part.

Active

HKC

CRYSTAL: 32.768KHZ, 20PPM, 7P

Technical Specifications

Parameters and characteristics for this part

Specification	3215S23276BMDABDNTE-TR

ESR (Equivalent Series Resistance)	70 kOhms
Frequency	32.768 kHz
Frequency Stability	-1 ppm
Frequency Tolerance	20 ppm
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Load Capacitance	7 pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	2-SMD, No Lead
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	1.5 mm
Size / Dimension [y]	0.059 "
Type	kHz Crystal (Tuning Fork)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

32.768 kHz ±20ppm Crystal 7pF 70 kOhms 2-SMD, No Lead
