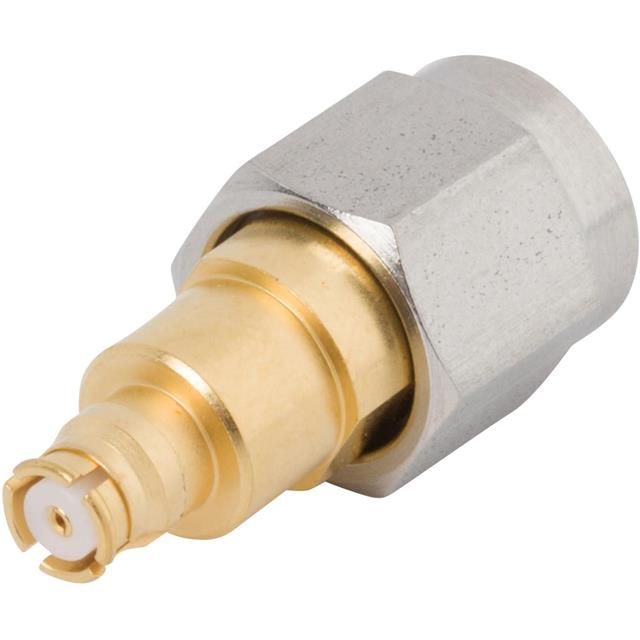

SF1129-6154
ActiveAmphenol SV Microwave
SMA MALE TO SMP FEMALE ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF1129-6154
ActiveAmphenol SV Microwave
SMA MALE TO SMP FEMALE ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF1129-6154 |
|---|---|
| Adapter Series | SMA to SMP |
| Adapter Type | Plug to Jack |
| Body Finish | Gold; Passivated |
| Body Material | Beryllium Copper, Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, SMP Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 69.42 | |
| 10 | $ 53.93 | |||
| 25 | $ 49.03 | |||
| 50 | $ 46.45 | |||
Description
General part information
SF1129-6154
Adapter Coaxial Connector SMA Plug, Male Pin To SMP Jack, Female Socket 50 Ohms
