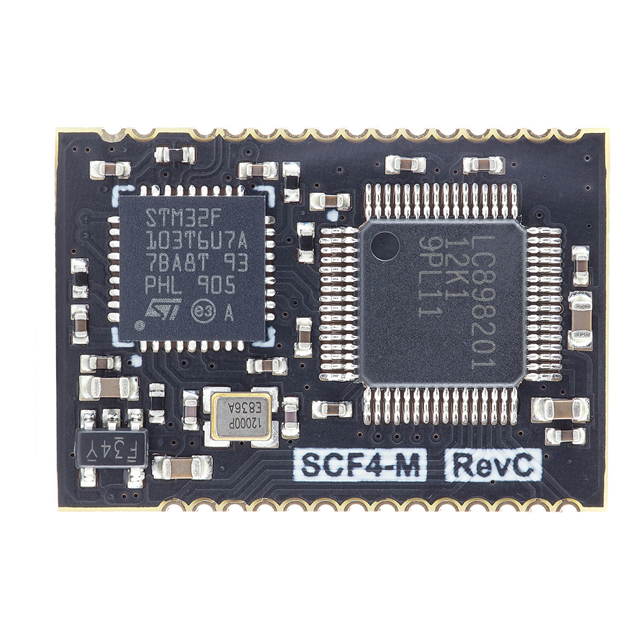

SCF4-M
ActiveKUROKESU
3CH. STEPPER MOTOR CONTROLLER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCF4-M
ActiveKUROKESU
3CH. STEPPER MOTOR CONTROLLER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCF4-M |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 1 A |
| Features | Programable Current |
| Interface | USB, Serial |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Number of Motors | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Type | Board |
| Voltage - Load [Max] | 7 V |
| Voltage - Load [Min] | 4.3 V |
| Voltage - Supply [Max] | 7 V |
| Voltage - Supply [Min] | 4.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 76.60 | |
| 5 | $ 72.70 | |||
| 25 | $ 68.90 | |||
| 50 | $ 65.10 | |||
| 100 | $ 53.60 | |||
Description
General part information
SCF4-M
Stepper, Bipolar 4.3 ~ 7.0V Supply 1A 4.3 ~ 7.0V Load
