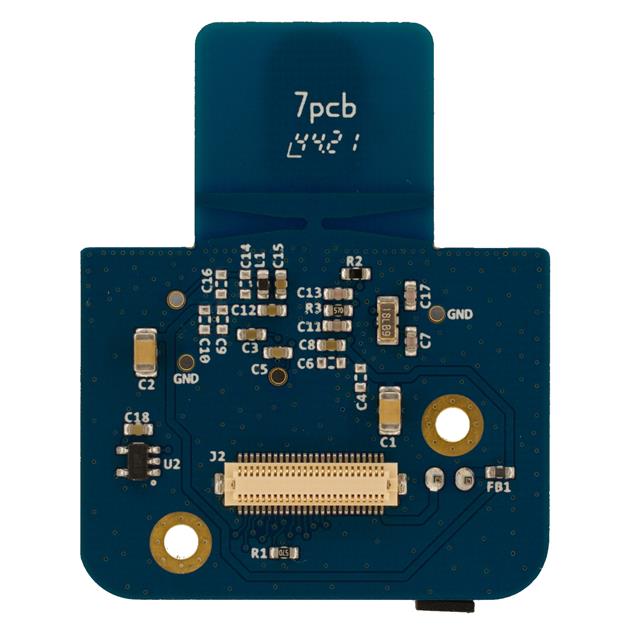

XC-SR1020-MP1
UnknownSPARK Microsystems International Inc.
RF TXRX MODULE INTEGRATED TRACE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XC-SR1020-MP1
UnknownSPARK Microsystems International Inc.
RF TXRX MODULE INTEGRATED TRACE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XC-SR1020-MP1 |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 8 mA |
| Current - Transmitting | 2.4 mA |
| Data Rate | 20.48 Mbps |
| Frequency [Max] | 9.3 GHz |
| Frequency [Min] | 6 GHz |
| Modulation | OOK |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 10 dBm |
| Protocol | Ultra Wideband (UWB) Impulse Radio |
| Sensitivity | -75 dBm |
| Serial Interfaces | SPI |
| Utilized IC / Part | SR1020 |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 130.00 | |
Description
General part information
XC-SR1020-MP1
Ultra Wideband (UWB) Impulse Radio Transceiver Module 6GHz ~ 9.3GHz Integrated, Trace
