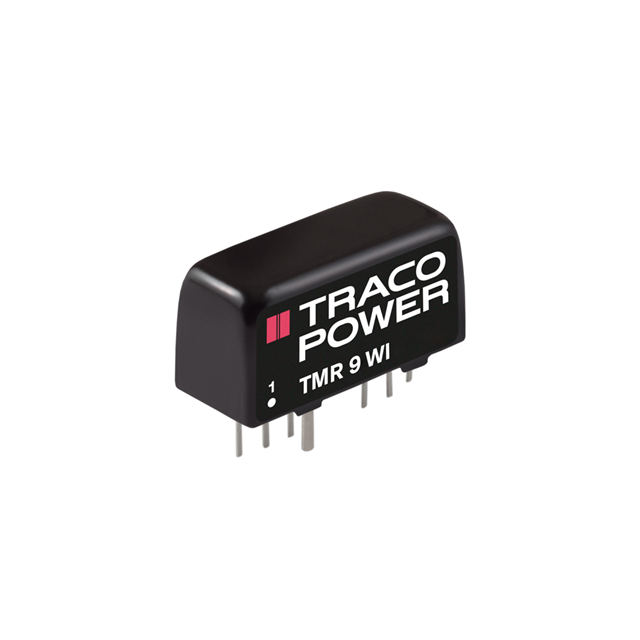

TMR 9-4812WI
ActiveTraco Power
DC DC CONVERTER 12V 9W
Deep-Dive with AI
Search across all available documentation for this part.
TMR 9-4812WI
ActiveTraco Power
DC DC CONVERTER 12V 9W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMR 9-4812WI |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus |
| Current - Output (Max) [Max] | 750 mA |
| Efficiency | 89 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6 Leads |
| Package / Case | 8-SIP Module |
| Power (Watts) | 9 W |
| Size / Dimension [x] | 0.86 in |
| Size / Dimension [x] | 21.8 mm |
| Size / Dimension [y] | 0.38 in |
| Size / Dimension [y] | 9.6 mm |
| Size / Dimension [z] | 11.2 mm |
| Size / Dimension [z] | 0.44 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 42.59 | |
| 10 | $ 39.14 | |||
| 25 | $ 37.85 | |||
| 50 | $ 36.90 | |||
| 100 | $ 35.97 | |||
| 250 | $ 34.79 | |||
| 500 | $ 31.19 | |||
Description
General part information
TMR 9-4812WI
Isolated Module DC DC Converter 1 Output 12V 750mA 18V - 75V Input
