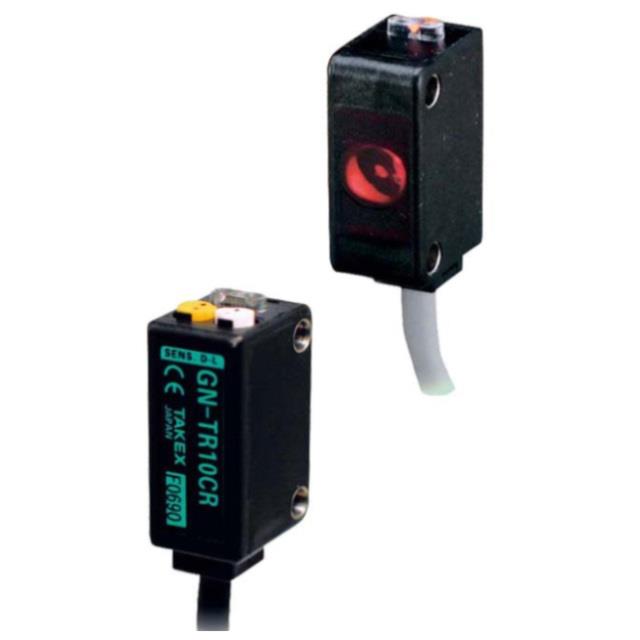

GN-T10CR
ActiveTakex America Inc.
COMPACT PHOTOELECTRIC SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GN-T10CR
ActiveTakex America Inc.
COMPACT PHOTOELECTRIC SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GN-T10CR |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Response Time | 500 µs |
| Sensing Distance [Max] | 393.701 in |
| Sensing Distance [Max] | 10 m |
| Sensing Distance [Min] | 0 mm |
| Sensing Distance [Min] | 0 " |
| Sensing Method | Through-Beam |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 117.15 | |
| 10 | $ 111.29 | |||
Description
General part information
GN-T10CR
Through-Beam Optical Sensor 0" ~ 393.701" (0m ~ 10m) NPN - Dark-ON/Light-ON - Selectable
