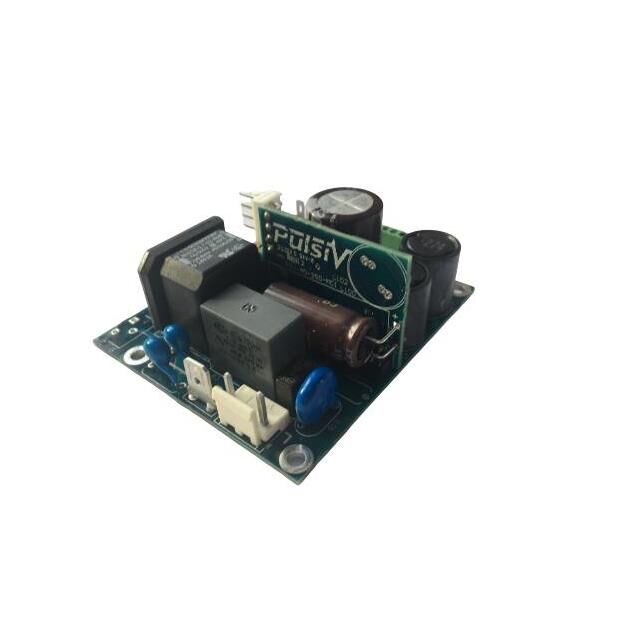

150W AC TO DC EVALUATION BOARD F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSV-EBAD-150-DS
ActivePulsiv Limited
150W AC TO DC EVALUATION BOARD F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSV-EBAD-150-DS |
|---|---|
| Board Type | Fully Populated |
| Main Purpose | AC/DC Converter |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Power - Output | 150 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Output [Max] | 380 V |
| Voltage - Output [Min] | 65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 243.91 | |
| 10 | $ 214.38 | |||
| 25 | $ 203.65 | |||
| 50 | $ 195.89 | |||
Description
General part information
PSV-EBAD-150-DS
- AC/DC Converter 1, Non-Isolated Outputs Evaluation Board
