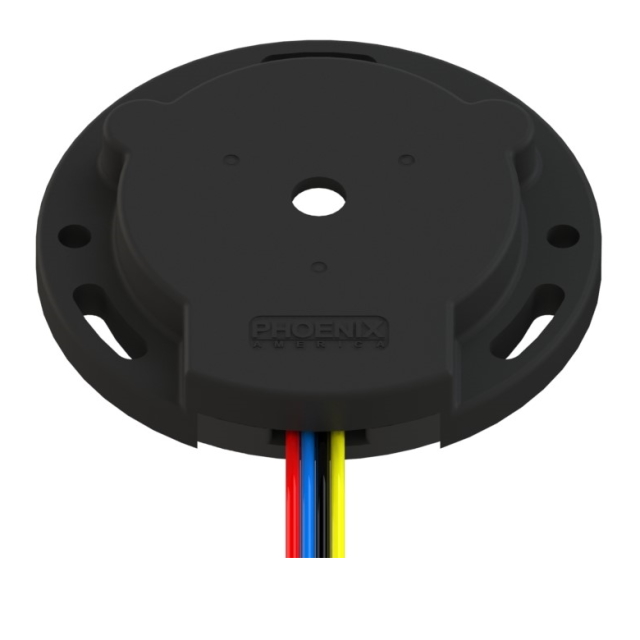

H2-0100-0156-05-A-N-H-F-A-X
ActivePhoenix America
NON-UNIVERSAL HUB ENCODER KIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2-0100-0156-05-A-N-H-F-A-X |
|---|---|
| Actuator Type | 5/32", Open Center |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount, Motors |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 100 |
| Termination Style | Wire Leads |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.90 | |
| 5 | $ 30.34 | |||
| 10 | $ 28.47 | |||
| 25 | $ 26.10 | |||
Description
General part information
H2-0100-0156-05-A-N-H-F-A-X
NON-UNIVERSAL HUB ENCODER KIT
