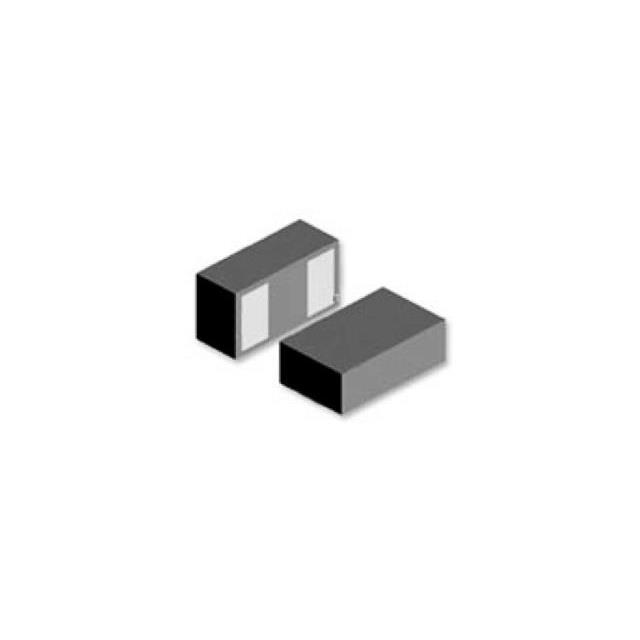

GSEPD15B0005
ActiveGood-Ark Semiconductor
TVS, ESD, SINGLE, BI-DIR, LOW CA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSEPD15B0005
ActiveGood-Ark Semiconductor
TVS, ESD, SINGLE, BI-DIR, LOW CA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSEPD15B0005 |
|---|---|
| Applications | HDMI, Ethernet, USB, DVI |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 0.05 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Power Line Protection | False |
| Supplier Device Package | 0402 |
| Type | Zener |
| Voltage - Clamping (Max) @ Ipp | 35 V |
| Voltage - Reverse Standoff (Typ) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.28 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2000 | $ 0.10 | |||
| 5000 | $ 0.09 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.28 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.12 | |||
| 2000 | $ 0.10 | |||
| 5000 | $ 0.09 | |||
| Tape & Reel (TR) | 10000 | $ 0.08 | ||
| 30000 | $ 0.08 | |||
| 50000 | $ 0.07 | |||
| 100000 | $ 0.07 | |||
Description
General part information
GSEPD15B0005
35V (Typ) Clamp Ipp Tvs Diode Surface Mount 0402
