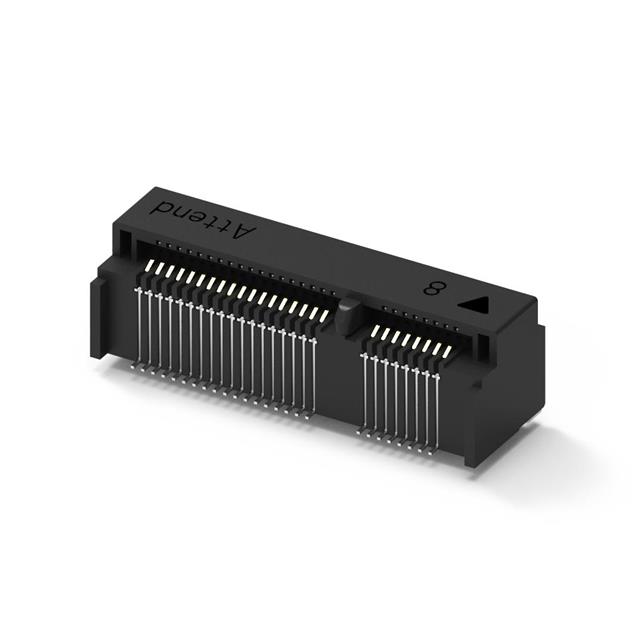

119A-92A00-R02
ActiveATTEND Technology
CONN MINI PCIE SOCKET 52P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
119A-92A00-R02
ActiveATTEND Technology
CONN MINI PCIE SOCKET 52P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 119A-92A00-R02 |
|---|---|
| Card Type | PCI Express Mini Card |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Features | Solder Retention, Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 18 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.51 | |
| 10 | $ 2.69 | |||
| 25 | $ 2.42 | |||
| 50 | $ 2.24 | |||
| 100 | $ 2.07 | |||
| Digi-Reel® | 1 | $ 3.51 | ||
| 10 | $ 2.69 | |||
| 25 | $ 2.42 | |||
| 50 | $ 2.24 | |||
| 100 | $ 2.07 | |||
| Tape & Reel (TR) | 300 | $ 1.84 | ||
| 600 | $ 1.72 | |||
| 900 | $ 1.65 | |||
| 1500 | $ 1.57 | |||
| 2100 | $ 1.52 | |||
| 3000 | $ 1.47 | |||
Description
General part information
119A-92A00-R02
52 Position Female Connector PCI Express Mini Card Gold 0.031" (0.80mm) Black
