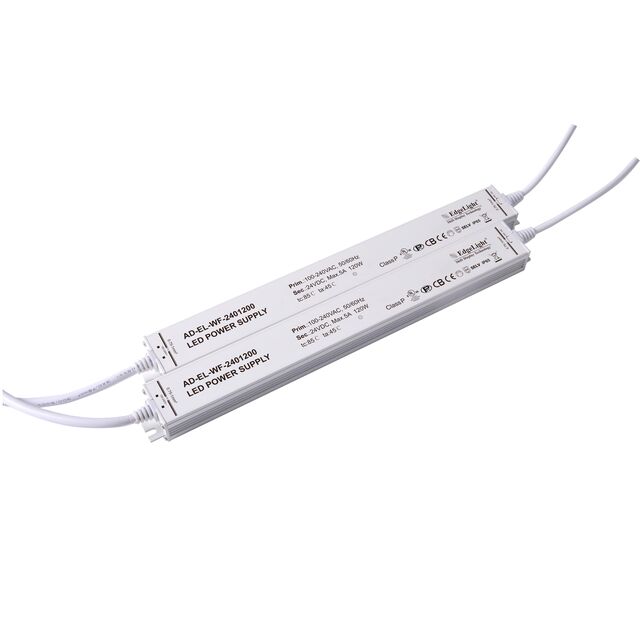

AD-EL-WF-2401200-B
ActiveEdgelight LLC
LED DRIVER UL LISTED 24VDC 120W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AD-EL-WF-2401200-B
ActiveEdgelight LLC
LED DRIVER UL LISTED 24VDC 120W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AD-EL-WF-2401200-B |
|---|---|
| Approval Agency | CE, CB, cULus |
| Current - Output (Max) [Max] | 5 A |
| Dimming | Analog, PWM |
| Efficiency | 92 % |
| Features | OCP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 120 W |
| Ratings | IP65 |
| Size / Dimension [x] | 342 mm |
| Size / Dimension [x] | 13.46 in |
| Size / Dimension [y] | 12.6 in |
| Size / Dimension [y] | 320 mm |
| Size / Dimension [z] | 22.6 mm |
| Size / Dimension [z] | 0.89 in |
| Standard Number | UL 8750 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Voltage - Input (Max) [Max] | 240 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 41.98 | |
| 50 | $ 40.98 | |||
| 100 | $ 38.98 | |||
Description
General part information
AD-EL-WF-2401200-B
5A 24V LED Driver AC DC Converter Topology 1 Output
