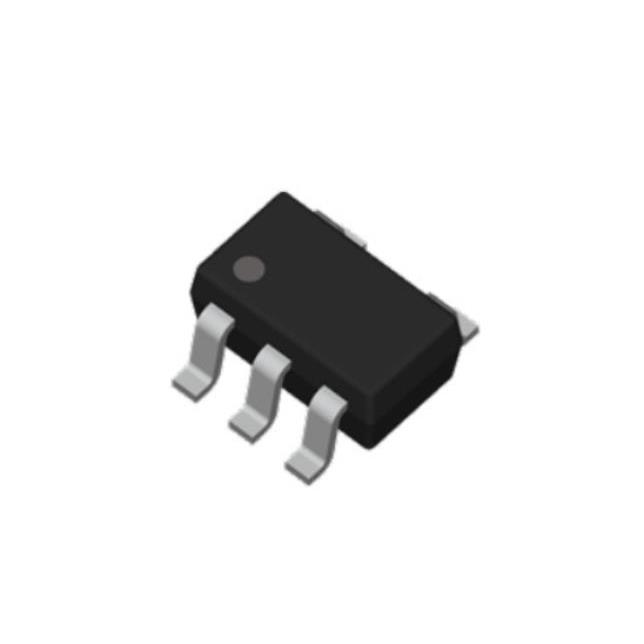

LP2985SF5-3.3
ActiveTAEJIN
IC REG LINEAR 3.3V 150MA SOT23-5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LP2985SF5-3.3
ActiveTAEJIN
IC REG LINEAR 3.3V 150MA SOT23-5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LP2985SF5-3.3 |
|---|---|
| Control Features | Enable |
| Current - Output | 150 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | SC-74A, SOT-753 |
| Protection Features | Over Temperature, Reverse Polarity, Over Current |
| PSRR | 75 dB |
| Supplier Device Package | SOT-23-5L |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
| Voltage Dropout (Max) [Max] | 0.165 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.20 | |
Description
General part information
LP2985SF5-3.3
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5L
Documents
Technical documentation and resources
