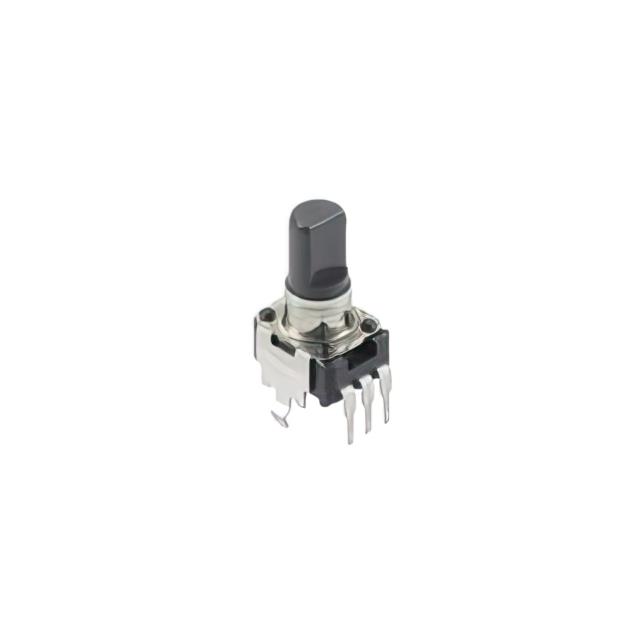

RK09D1130C1B
ActiveAlps Alpine
POT 10K OHM 1/20W LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
RK09D1130C1B
ActiveAlps Alpine
POT 10K OHM 1/20W LINEAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RK09D1130C1B |
|---|---|
| Actuator Diameter [diameter] | 0.236 in |
| Actuator Diameter [diameter] | 6 mm |
| Actuator Length [z] | 20 mm |
| Actuator Length [z] | 0.787 in |
| Actuator Type | Flatted |
| Adjustment Type | Top Adjustment |
| Built in Switch | False |
| Mounting Type | Through Hole |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.05 W |
| Power (Watts) | 50 mW |
| Resistance (Ohms) | 10k |
| Rotation | 300 ░ |
| Size - Body [x] | 11 mm |
| Size - Body [x] | 0.433 " |
| Size - Body [y] | 9.8 mm |
| Size - Body [y] | 0.386 " |
| Taper | Linear |
| Termination Style | Board Locks, PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.87 | |
| 10 | $ 1.58 | |||
| 25 | $ 1.73 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.33 | |||
| 250 | $ 1.53 | |||
| 500 | $ 1.17 | |||
| 1000 | $ 1.11 | |||
| 5000 | $ 0.98 | |||
| 10000 | $ 0.93 | |||
Description
General part information
RK09D1130C1B
10k Ohm 1 Gang Linear Through Hole Potentiometer 1.0 Turns 0.05W, 1/20W PC Pins, Board Locks
Documents
Technical documentation and resources
No documents available
