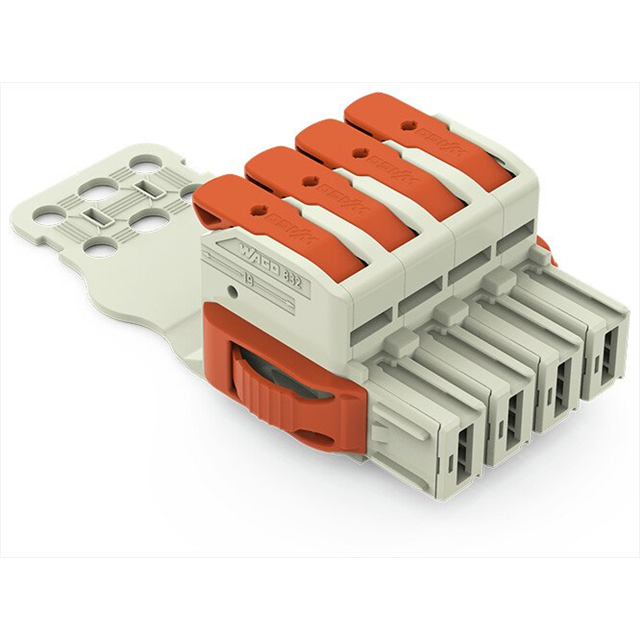

832-1104/314-000
ActiveWAGO Corporation
1-CONDUCTOR FEMALE PLUG 100% PROTECTED AGAINST MISMATING, LIGHT GRAY
Deep-Dive with AI
Search across all available documentation for this part.
832-1104/314-000
ActiveWAGO Corporation
1-CONDUCTOR FEMALE PLUG 100% PROTECTED AGAINST MISMATING, LIGHT GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 832-1104/314-000 |
|---|---|
| Color | Gray |
| Contact Material | Electrolytic Copper |
| Contact Mating Finish | Silver |
| Current - IEC | 76 A |
| Current - UL | 85 A |
| Features | Strain Relief |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 29.1 mm |
| Insulation Height [custom] | 1.146 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -60 °C |
| Pitch [x] | 10.16 mm |
| Pitch [x] | 0.4 in |
| Positions Per Level | 4 |
| Termination Style | Screwless - Push-In Spring |
| Type | Plug, Female Sockets |
| Voltage - IEC | 1 kV |
| Wire Gauge or Range - AWG [Max] | 18 AWG |
| Wire Gauge or Range - AWG [Min] | 4 AWG |
| Wire Gauge or Range - mm² [Max] | 16 mm² |
| Wire Gauge or Range - mm² [Min] | 0.75 mm² |
| Wire Strip Length [Max] | 20 mm |
| Wire Strip Length [Min] | 18 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
832-1104/314-000
4 Position Terminal Block Plug, Female Sockets 0.400" (10.16mm) 180° Free Hanging (In-Line)
