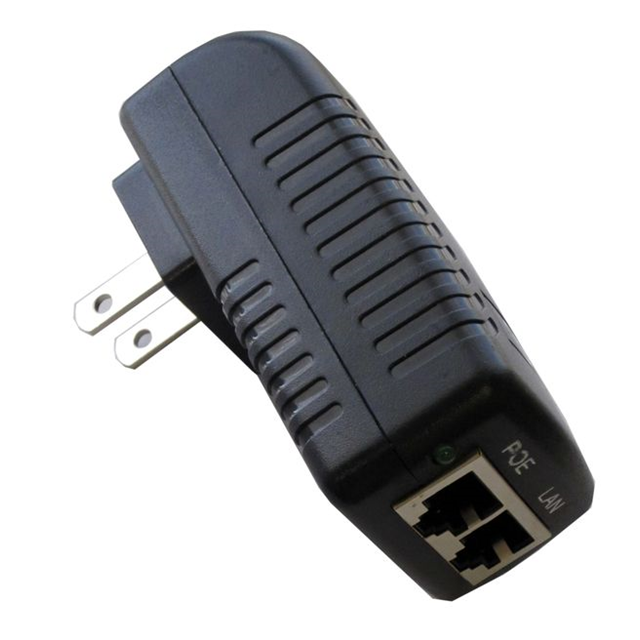

TP-POE-24-WP
ObsoleteTycon Systems Inc.
24V 24W 10/100MB POE POWER INSER
Deep-Dive with AI
Search across all available documentation for this part.
TP-POE-24-WP
ObsoleteTycon Systems Inc.
24V 24W 10/100MB POE POWER INSER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TP-POE-24-WP |
|---|---|
| Approval Agency | CE |
| Current - Output | 1 A |
| Efficiency | 80 % |
| Features | SCP, OCP, OVP |
| Input Connector | RJ45 (Data, Power) |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 24 W |
| Size / Dimension [x] | 82.6 mm |
| Size / Dimension [x] | 3.25 in |
| Size / Dimension [y] | 44.5 mm |
| Size / Dimension [y] | 1.75 in |
| Size / Dimension [z] | 34.3 mm |
| Size / Dimension [z] | 1.35 " |
| Type | Passive Injector |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TP-POE-24-WP
24V Power Over Ethernet (POE) 1 Port Passive Injector Data Rate
Documents
Technical documentation and resources
No documents available
