R76QN2820SE30J

Active

KEMET

CAP FILM AUTO POLYPROP RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM AUTO POLYPROP RAD

Technical Specifications

Parameters and characteristics for this part

Specification	R76QN2820SE30J

Applications	Automotive, High Frequency, Switching, High Pulse, DV/DT
Capacitance	0.082 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	16 mOhm
Height - Seated (Max) [Max] [z]	18.6 mm
Height - Seated (Max) [Max] [z]	0.732 in
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	0.394 in
Size / Dimension [y]	10 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	600 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1188	$ 0.78
Newark	Each	1000	$ 0.84
		2500	$ 0.78

General part information

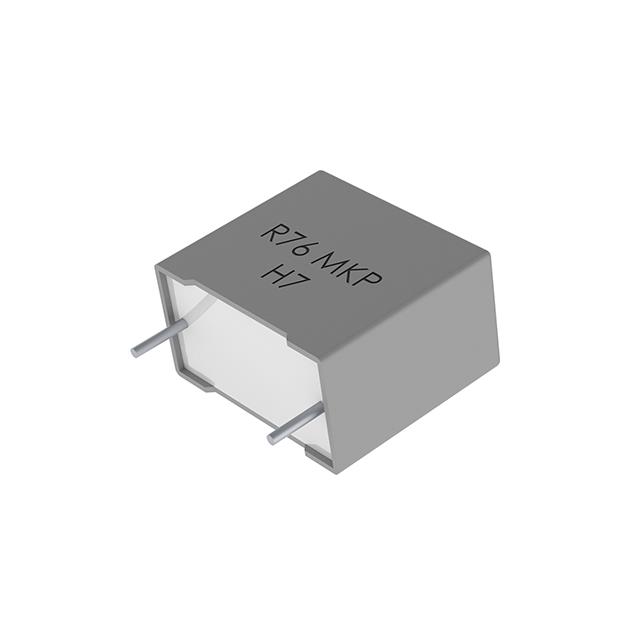

0.082 µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial
