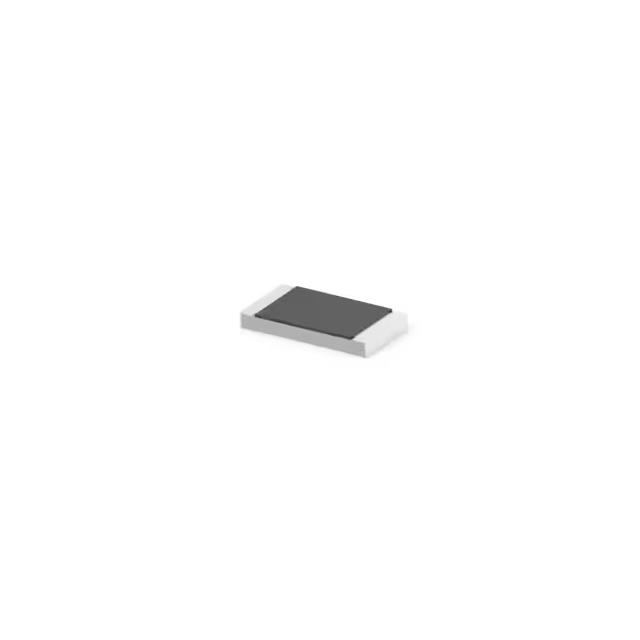

RLC73N3AR082FTDF
ActiveTE Connectivity Passive Product
RLC73N 3A R082 1% 1K RL
Deep-Dive with AI
Search across all available documentation for this part.
RLC73N3AR082FTDF
ActiveTE Connectivity Passive Product
RLC73N 3A R082 1% 1K RL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RLC73N3AR082FTDF |
|---|---|
| Composition | Thick Film |
| Features | Current Sense |
| Height - Seated (Max) [Max] [z] | 0.84 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6432 Metric |
| Package / Case | 2512 |
| Power (Watts) | 1 W |
| Resistance | 82 mOhms |
| Size / Dimension [x] | 6.35 mm |
| Size / Dimension [x] | 0.25 " |
| Size / Dimension [y] | 0.122 in |
| Size / Dimension [y] | 3.1 mm |
| Supplier Device Package | 2512 |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.15 | |
Description
General part information
RLC73N3AR082FTDF
82 mOhms ±1% 1W Chip Resistor 2512 (6432 Metric) Current Sense Thick Film
Documents
Technical documentation and resources
No documents available
