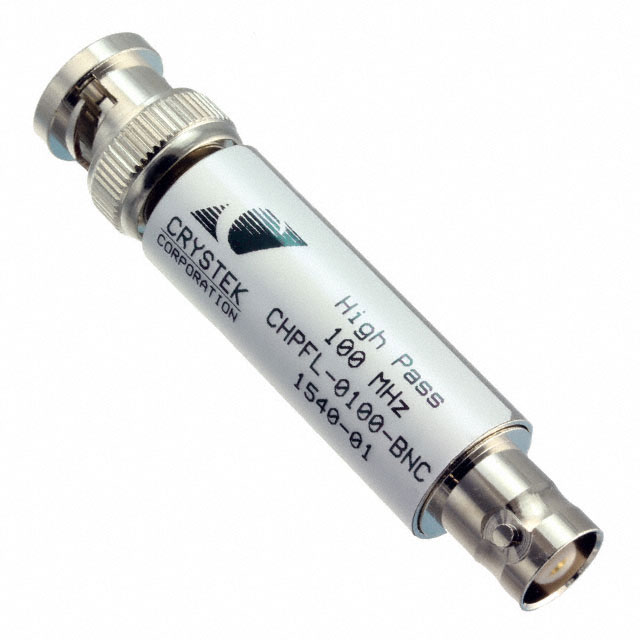

CHPFL-0100-BNC
ActiveCrystek Corporation
RF FILTER HI PASS 100MHZ INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CHPFL-0100-BNC |
|---|---|
| Filter Type | High Pass |
| Frequency | 100 MHz |
| Mounting Type | Free Hanging (In-Line) |
| Package / Case | BNC Connection, Inline, F and M |
| Size / Dimension [diameter] | 13.97 mm, 0.55 in |
| Size / Dimension [x] | 65.79 mm, 2.59 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 49.00 | |
| 10 | $ 39.97 | |||
| 25 | $ 36.85 | |||
| 50 | $ 34.65 | |||
| 100 | $ 32.98 | |||
Description
General part information
CHPFL-0100-BNC
100MHz Frequency High Pass RF Filter (Radio Frequency) Bandwidth Inline, BNC Connection, F and M
