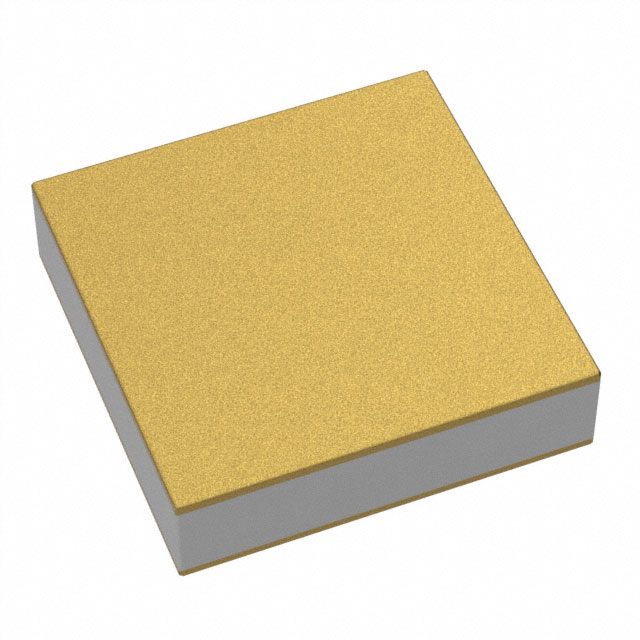

S0AJ500W100K1S2001W
ActiveJOHANSON DIELECTRICS
CAP CER 10PF 50V SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S0AJ500W100K1S2001W
ActiveJOHANSON DIELECTRICS
CAP CER 10PF 50V SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S0AJ500W100K1S2001W |
|---|---|
| Applications | High Frequency, Microwave, RF |
| Capacitance | 10 pF |
| Features | Single Layer, High Q, Low Loss, Bonding Mountable, Low Profile |
| Mounting Type | Surface Mount, SLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard SMD |
| Size / Dimension [x] | 0.38 mm |
| Size / Dimension [x] | 0.015 " |
| Size / Dimension [y] | 0.012 " |
| Size / Dimension [y] | 0.3 mm |
| Temperature Coefficient | B |
| Thickness (Max) [Max] | 0.2 mm |
| Thickness (Max) [Max] | 0.008 in |
| Tolerance | 10 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 0.87 | |
| 200 | $ 0.81 | |||
| 300 | $ 0.78 | |||
| 500 | $ 0.75 | |||
| 700 | $ 0.73 | |||
| 1000 | $ 0.71 | |||
| 2500 | $ 0.67 | |||
| 5000 | $ 0.65 | |||
| 10000 | $ 0.63 | |||
Description
General part information
S0AJ500W100K1S2001W
10 pF ±10% 50V Ceramic Capacitor B Nonstandard SMD
