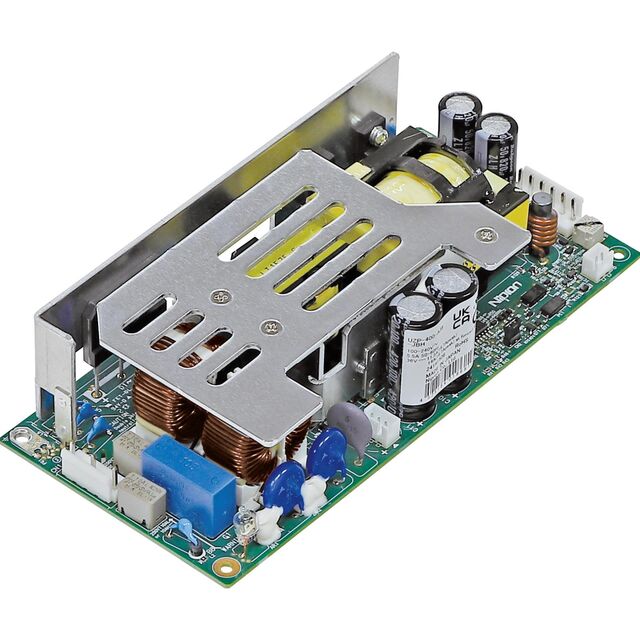

UZP-400-A24-JBH
ActiveNipron Co., Ltd.
AC/DC CONVERTER 24V 400W
Deep-Dive with AI
Search across all available documentation for this part.
UZP-400-A24-JBH
ActiveNipron Co., Ltd.
AC/DC CONVERTER 24V 400W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UZP-400-A24-JBH |
|---|---|
| Applications | Industrial |
| Approval Agency | UL, CSA, CE |
| Current - Output 1 | 16.8 A |
| Efficiency | 94 % |
| Features | Remote On/Off, PFC |
| Minimum Load Required | False |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 403 W, 504 W |
| Size / Dimension [x] | 180.1 mm |
| Size / Dimension [x] | 7.09 in |
| Size / Dimension [y] | 3.31 " |
| Size / Dimension [y] | 84.1 mm |
| Size / Dimension [z] | 45 mm |
| Size / Dimension [z] | 1.77 in |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 202.00 | |
Description
General part information
UZP-400-A24-JBH
Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
