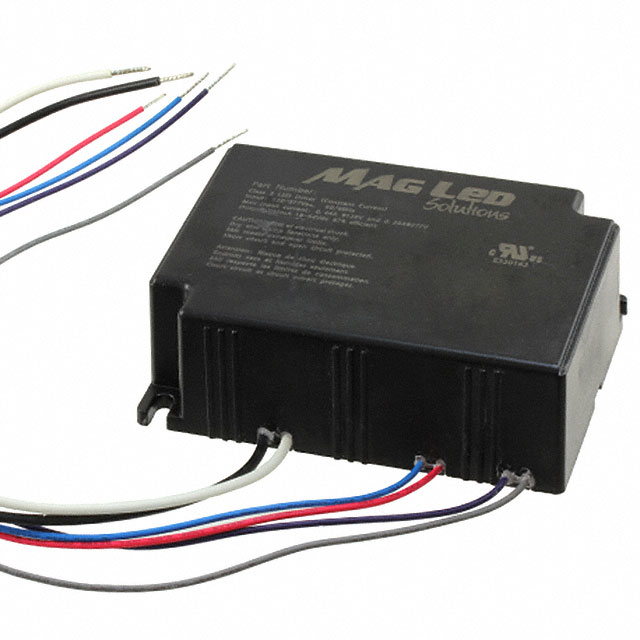

ML-B40-UVQ-700T
ActiveMag-LED Solutions
LED SUPPLY CC AC/DC 19-59V 700MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ML-B40-UVQ-700T |
|---|---|
| Approval Agency | cULus |
| Current - Output (Max) [Max] | 700 mA |
| Dimming | Analog |
| Efficiency | 87 % |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 40 W |
| Ratings | IP20 |
| Size / Dimension [x] | 3.76 in |
| Size / Dimension [x] | 95.5 mm |
| Size / Dimension [y] | 2.81 " |
| Size / Dimension [y] | 71.4 mm |
| Size / Dimension [z] | 1.26 in |
| Size / Dimension [z] | 32 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Isolation | 2000 V |
| Voltage - Output [Max] | 59 V |
| Voltage - Output [Min] | 19 V |
| Weight [custom] | 360.15 g |
| Weight [custom] | 0.794 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1600 | $ 22.50 | |
Description
General part information
ML-B40-UVQ-700T
700mA 19 ~ 59V Constant Current LED Driver AC DC Converter Topology 1 Output
