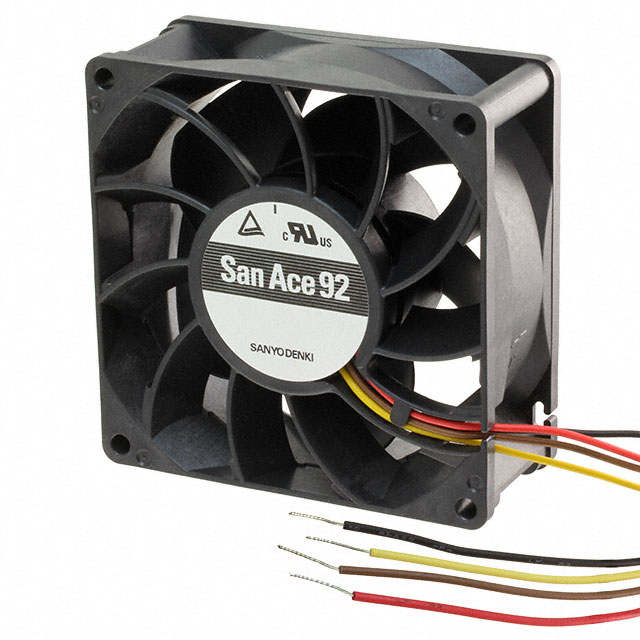

9RA0924P4G0011
ActiveSanyo Denki America Inc.
FAN AXIAL 92X25MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9RA0924P4G0011
ActiveSanyo Denki America Inc.
FAN AXIAL 92X25MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9RA0924P4G0011 |
|---|---|
| Air Flow | 1.78 mł/min |
| Air Flow | 63.5 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 37 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 3.12 W |
| RPM | 4200 RPM |
| Static Pressure | 72.2 Pa |
| Static Pressure | 0.29 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 21.6 VDC |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.88 | |
| 10 | $ 22.73 | |||
| 28 | $ 21.86 | |||
| 56 | $ 20.43 | |||
| 112 | $ 18.84 | |||
| 252 | $ 18.56 | |||
| 504 | $ 18.41 | |||
Description
General part information
9RA0924P4G0011
Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 63.5 CFM (1.78mł/min) 4 Wire Leads
