ORI241270020
ActiveVictron Energy

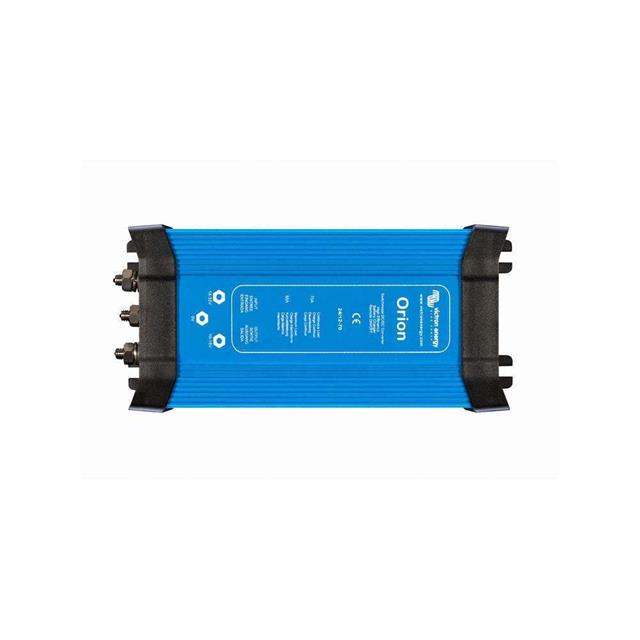

VICTRON ORION IP20 24/12V 70A DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ORI241270020
ActiveVictron Energy
VICTRON ORION IP20 24/12V 70A DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ORI241270020 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 70 A |
| Efficiency | 92 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [x] | 195.6 mm |
| Size / Dimension [x] | 7.7 " |
| Size / Dimension [y] | 3.5 in |
| Size / Dimension [y] | 88.9 mm |
| Size / Dimension [z] | 2.6 in |
| Size / Dimension [z] | 66 mm |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input (Max) [Max] [custom] | 35 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Output 1 [Max] | 15 V |
| Voltage - Output 1 [Min] | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 124.10 | |
Description
General part information
ORI241270020
Enclosed DC DC Converter 1 Output 10 ~ 15V 70A 35V Input
Documents
Technical documentation and resources
