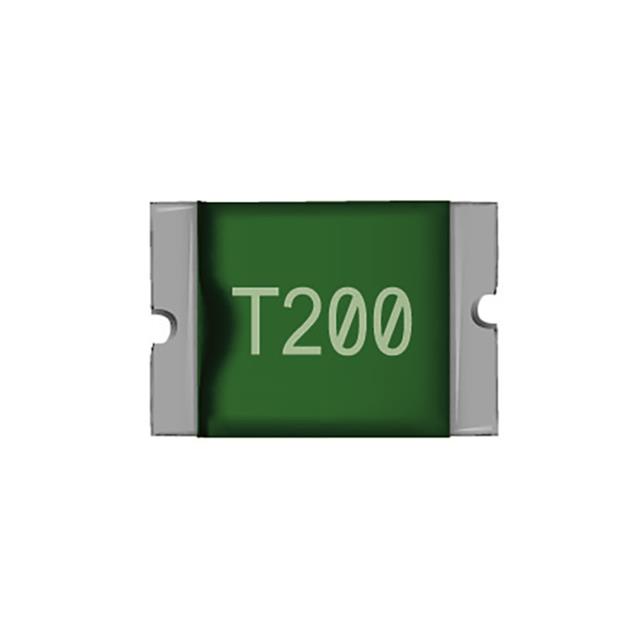

KMC5S200RY
ActiveThinking Electronics Industrial Co.
POLYMER PTC 2.0A RESETTABLE FUSE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KMC5S200RY
ActiveThinking Electronics Industrial Co.
POLYMER PTC 2.0A RESETTABLE FUSE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KMC5S200RY |
|---|---|
| Approval Agency | cUL, TUV, UL |
| Current - Hold (Ih) (Max) [Max] | 2 A |
| Current - Max [Max] | 100 A |
| Current - Trip (It) | 3.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1812, Concave |
| Package / Case | 4532 Metric |
| Resistance - Initial (Ri) (Min) [Min] | 20 mOhms |
| Resistance - Post Trip (R1) (Max) [Max] | 60 mOhms |
| Size / Dimension [x] | 4.55 mm |
| Size / Dimension [x] | 0.179 in |
| Size / Dimension [y] | 3.24 mm |
| Size / Dimension [y] | 0.128 in |
| Thickness (Max) [Max] | 0.033 in |
| Thickness (Max) [Max] | 0.85 mm |
| Time to Trip | 2 s |
| Type | Polymeric |
| Voltage - Max [Max] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.50 | |
| 5 | $ 0.45 | |||
| 10 | $ 0.40 | |||
| 15 | $ 0.35 | |||
Description
General part information
KMC5S200RY
Polymeric PTC Resettable Fuse 8V 2 A Ih Surface Mount 1812 (4532 Metric), Concave
