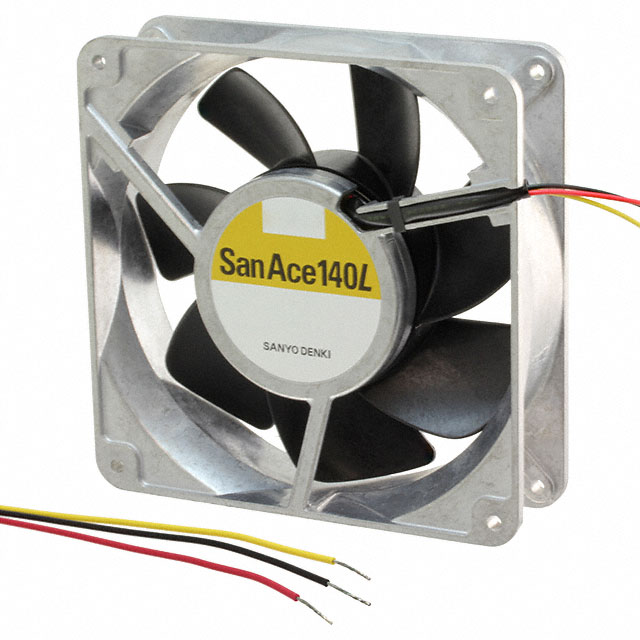

109L1424H101 - 109L1424H101

109L1424H101

Obsolete
Sanyo Denki America Inc.

FAN AXIAL 140X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetRotor Balancing+1
109L1424H101 - 109L1424H101

109L1424H101

Obsolete
Sanyo Denki America Inc.

FAN AXIAL 140X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheetRotor Balancing+1

Technical Specifications

Parameters and characteristics for this part

Specification109L1424H101
Air Flow4.45 m³/min
Air Flow159 CFM
Approval AgencyCSA, TUV, UL
Bearing TypeBall
Current Rating (Amps)370 mA
Fan TypeTubeaxial
FeaturesSpeed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.100000 Hrs
Material - BladePlastic
Material - FrameAluminum
Noise46 dB(A)
Operating Temperature [Max]70 °C
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 °C
Operating Temperature [Min]-20 C
Power (Watts)8.88 W
RPM2600 RPM
Size / Dimension [x]140 mm
Size / Dimension [z]140 mm
Static Pressure0.394 in H2O
Static Pressure98.1 Pa
Termination3 Wire Leads
Voltage - Rated24 VDC
Weight0.6 kg
Weight1.3 lbs
Width [y]38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

109L1424H101

Fan Tubeaxial 24VDC Square - 140mm L x 140mm H Ball 159.0 CFM (4.45m³/min) 3 Wire Leads
