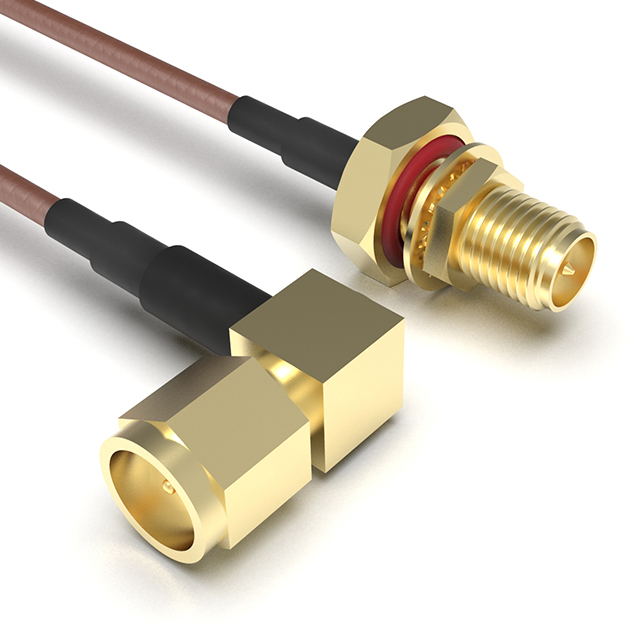

CABLE 252 RF-0200-A-1
ActiveGCT (Gradconn)
COAX CBL RP-SMA TO SMA 7.8"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CABLE 252 RF-0200-A-1
ActiveGCT (Gradconn)
COAX CBL RP-SMA TO SMA 7.8"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CABLE 252 RF-0200-A-1 |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-178 |
| Color | Brown |
| Features | IP Rated Unmated |
| Frequency - Max [Max] | 3 GHz |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Length | 7.874 in |
| Length | 200 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 250 | $ 8.59 | |
Description
General part information
CABLE 252 RF-0200-A-1
Cable Assembly Coaxial RP-SMA to SMA RG-178 7.874" (200.00mm)
Documents
Technical documentation and resources
