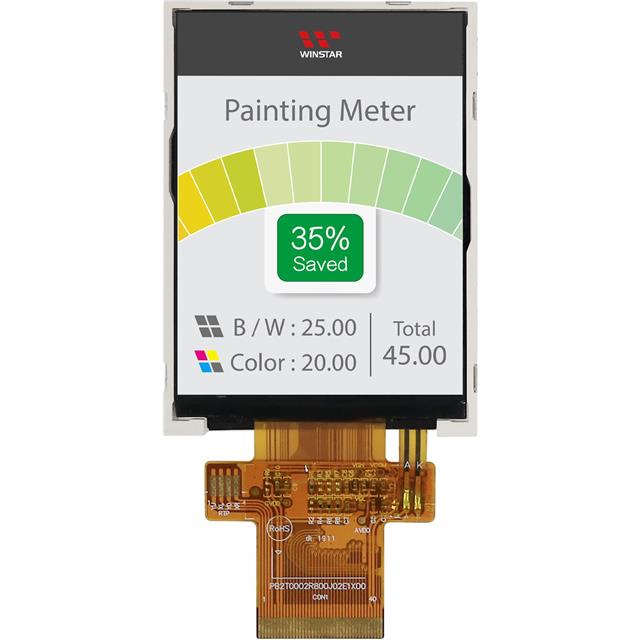

WF28JTYAJDNN0
ActiveWinstar Display
2.8" TFT IPS LCD DISPLAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WF28JTYAJDNN0
ActiveWinstar Display
2.8" TFT IPS LCD DISPLAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WF28JTYAJDNN0 |
|---|---|
| Background Color | Black |
| Backlight | LED - White |
| Controller Type | ILI9341V |
| Diagonal Screen Size | 2.8 in |
| Diagonal Screen Size | 71.12 mm |
| Display Mode | Transmissive |
| Display Type | TFT - Color LCD |
| Dot Pitch [x] | 0.18 mm |
| Dot Pitch [y] | 0.18 mm |
| Dot Pixels | QVGA |
| Dot Pixels [x] | 320 pixels |
| Dot Pixels [y] | 240 pixels |
| Graphics Color | Green, Red, Blue |
| Interface | MCU, SPI |
| Touchscreen | Non-Touch |
| Viewing Area [x] | 44.2 mm |
| Viewing Area [y] | 58.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.36 | |
Description
General part information
WF28JTYAJDNN0
Non-Touch Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LCD MCU, SPI 2.8" (71.12mm) 320 x 240 (QVGA)
