SC25-13WL
ActiveJAM
2.5 MM W TO B CONNECTOR 13P HEAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SC25-13WL
ActiveJAM
2.5 MM W TO B CONNECTOR 13P HEAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC25-13WL |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post [x] | 0.134 in |
| Contact Length - Post [x] | 3.4 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Detent Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 13 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.58 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.26 | |||
| 2500 | $ 0.24 | |||
Description
General part information

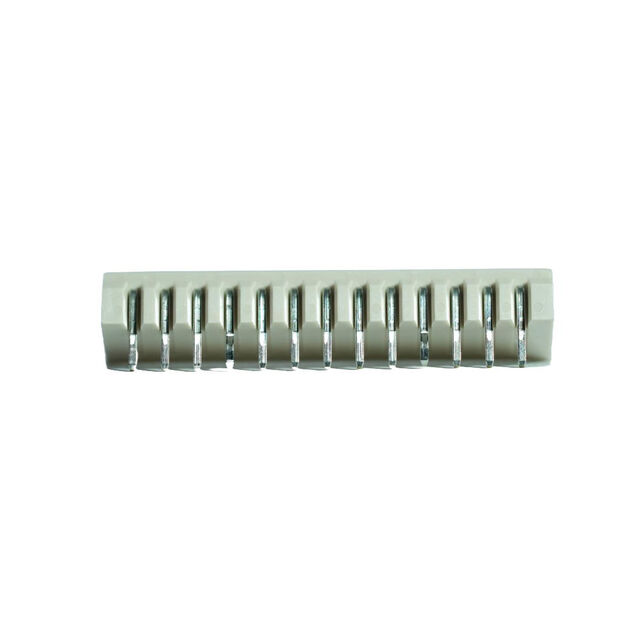

SC25-13WL
Connector Header Through Hole, Right Angle 13 position 0.098" (2.50mm)
