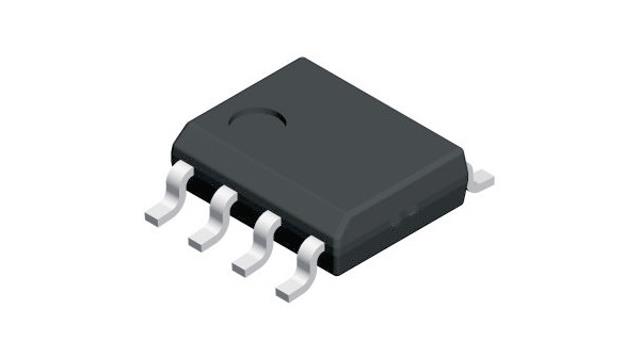

CA3080M
ActiveRochester Electronics, LLC
IC OPAMP TRANSCOND 1 CIRC 8SOIC
Deep-Dive with AI
Search across all available documentation for this part.
CA3080M
ActiveRochester Electronics, LLC
IC OPAMP TRANSCOND 1 CIRC 8SOIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CA3080M |
|---|---|
| Amplifier Type | Transconductance |
| Current - Input Bias | 2 µA |
| Current - Output / Channel | 650 µA |
| Current - Supply | 1 mA |
| Gain Bandwidth Product | 2 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Output Type | Push-Pull |
| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Slew Rate | 75 V/µs |
| Supplier Device Package | 8-SOIC |
| Voltage - Input Offset | 400 µV |
| Voltage - Supply Span (Max) [Max] | 30 V |
| Voltage - Supply Span (Min) [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 54 | $ 5.64 | |
Description
General part information
CA3080M
Transconductance Amplifier 1 Circuit Push-Pull 8-SOIC
Documents
Technical documentation and resources
No documents available
