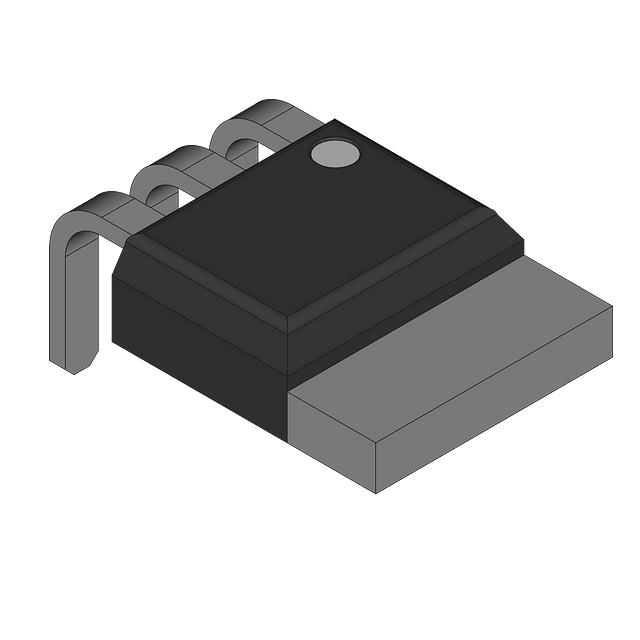

FGI3236-F085

Active

ON Semiconductor

IGBT, 360V, 27A, 1.32V, 320MJ, TO-262<BR>ECOSPARK® I, N-CHANNEL IGNITION

Search across all available documentation for this part.

Active

ON Semiconductor

IGBT, 360V, 27A, 1.32V, 320MJ, TO-262<BR>ECOSPARK® I, N-CHANNEL IGNITION

Technical Specifications

Parameters and characteristics for this part

Specification	FGI3236-F085

Current - Collector (Ic) (Max) [Max]	44 A
Gate Charge	20 nC
Grade	Automotive
Input Type	Logic
Mounting Type	Through Hole
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	TO-262AA, TO-262-3 Long Leads, I2PAK
Power - Max [Max]	187 W
Qualification	AEC-Q101
Supplier Device Package	TO-262 (I2PAK)
Td (on/off) @ 25°C	-/5.4µs
Test Condition	5 V, 1000 Ohm, 300 V
Vce(on) (Max) @ Vge, Ic	1.4 V
Voltage - Collector Emitter Breakdown (Max)	360 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1.29
Digikey	Bulk	136	$ 2.22
		136	$ 2.22

General part information

IGBT 360 V 44 A 187 W Through Hole TO-262 (I2PAK)
