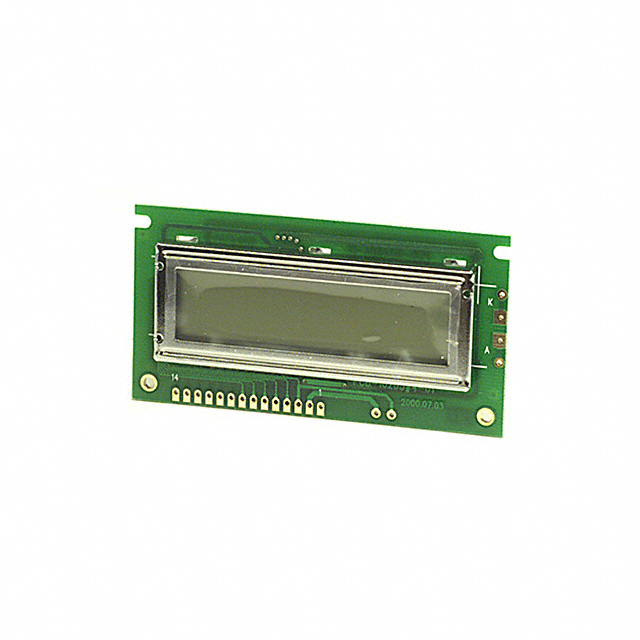

MDL-24265-LV
ObsoleteVaritronix
LCD MOD 48 DIG 24 X 2 REFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
MDL-24265-LV
ObsoleteVaritronix
LCD MOD 48 DIG 24 X 2 REFLECTIVE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MDL-24265-LV |
|---|---|
| Background Color | Green |
| Backlight | Without Backlight |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 3.15 mm |
| Character Size [z] | 5.15 mm |
| Display Format [x] | 24 |
| Display Format [y] | 2 |
| Display Mode | Reflective |
| Display Type | TN - Twisted Nematic |
| Dot Size [x] | 0.6 mm |
| Dot Size [y] | 0.6 mm |
| Interface | Parallel |
| Number of Characters | 48 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -5 °C |
| Outline L x W x H [x] | 118 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 6.6 mm |
| Text Color | Black |
| Viewing Area [x] | 93.5 mm |
| Viewing Area [y] | 15.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MDL-24265-LV
Character Display Module Reflective 5 x 8 Dots TN - Twisted Nematic Without Backlight Parallel 118.00mm x 36.00mm x 6.60mm
