WL-19081255
ActiveWAMCO

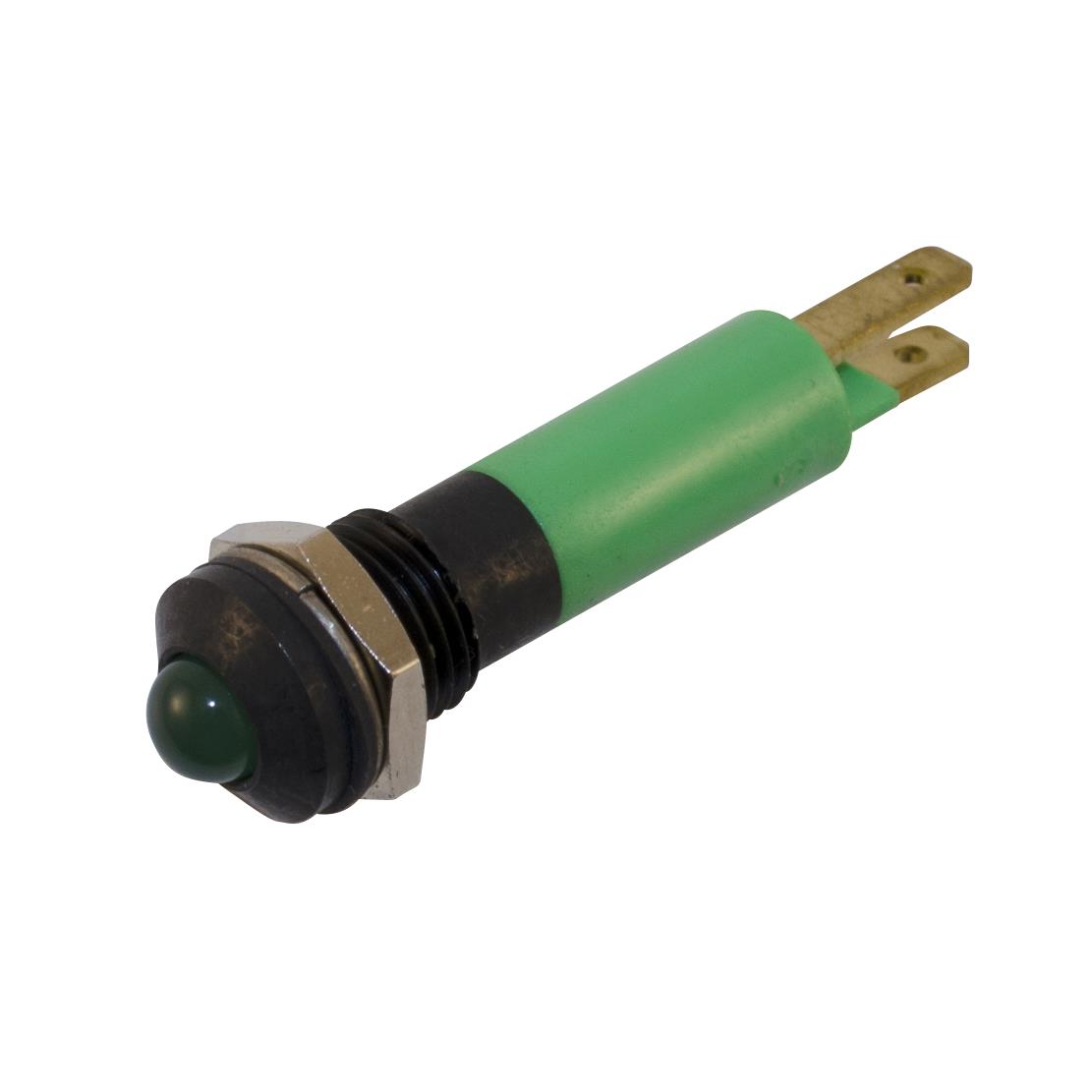

LED PANEL MOUNT INDICATOR, PROMINENT BEZEL, GREEN, 12 V, 8 MM, 17 MA, 1.4 CD, IP67
Deep-Dive with AI
Search across all available documentation for this part.
WL-19081255
ActiveWAMCO
LED PANEL MOUNT INDICATOR, PROMINENT BEZEL, GREEN, 12 V, 8 MM, 17 MA, 1.4 CD, IP67
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WL-19081255 |
|---|---|
| Current | 17 mA |
| Lens Color | Green |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 14000 mcd |
| Panel Cutout Dimensions | 8 mm |
| Panel Cutout Dimensions | 0.315 in |
| Panel Cutout Shape | Round |
| Ratings | AC/DC |
| Termination Style | Quick Connect |
| Termination Style | 0.354 in |
| Termination Style | 9 mm |
| Type | LED |
| Voltage | 12 V |
| Wavelength - Peak | 525 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
WL-19081255
LED Panel Indicator 12V 17mA Quick Connect - 0.354" (9.00mm)
