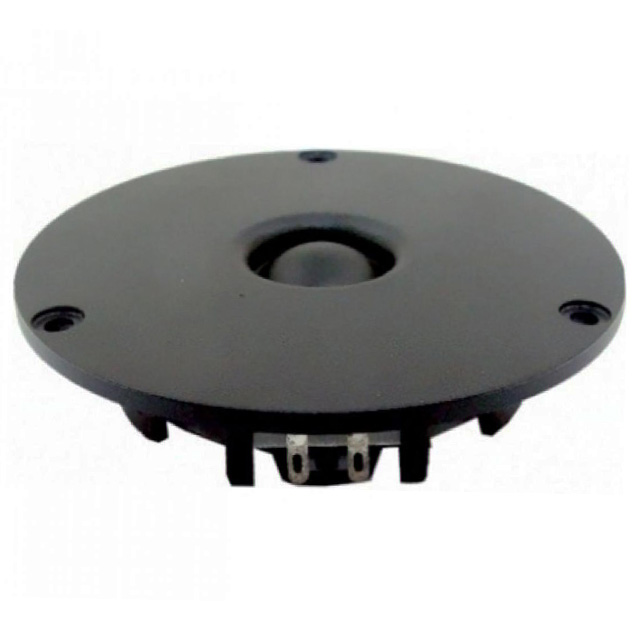

D19TD05-08
ActivePeerless by Tymphany
SPEAKR 7.64OHM 100W TOP 87.5DB
Deep-Dive with AI
Search across all available documentation for this part.
D19TD05-08
ActivePeerless by Tymphany
SPEAKR 7.64OHM 100W TOP 87.5DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D19TD05-08 |
|---|---|
| Efficiency - dBA | 87.5 dBA |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 1687.93 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 1 kHz |
| Height - Seated (Max) [Max] [z] | 0.87 in |
| Height - Seated (Max) [Max] [z] | 22.1 mm |
| Impedance | 7.64 Ohms |
| Material - Cone | Cloth, Treated |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Rated | 100 W |
| Shape | Round |
| Size / Dimension [diameter] | 3.701 in |
| Size / Dimension [diameter] | 94 mm |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Tweeter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.87 | |
| 5 | $ 16.97 | |||
| 50 | $ 16.08 | |||
| 100 | $ 15.19 | |||
| 250 | $ 14.29 | |||
Description
General part information
D19TD05-08
7.64 Ohms Tweeter Speaker 100 W 1 kHz ~ 20 kHz Top Round
Documents
Technical documentation and resources
No documents available
