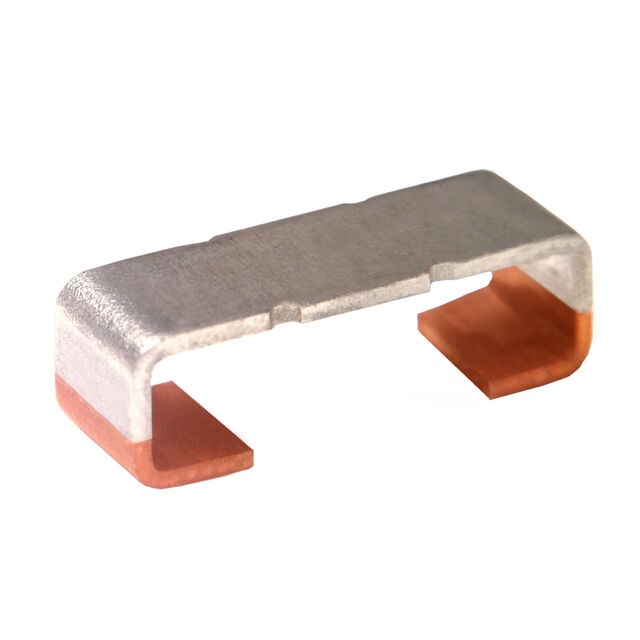

BRS-N-R010-2.0
ActiveIsabellenhuette USA
RESISTOR - ISA-WELD SHUNT, 0.01,
Deep-Dive with AI
Search across all available documentation for this part.
BRS-N-R010-2.0
ActiveIsabellenhuette USA
RESISTOR - ISA-WELD SHUNT, 0.01,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BRS-N-R010-2.0 |
|---|---|
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 4.1 mm |
| Height - Seated (Max) [Max] [z] | 0.161 " |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Power (Watts) | 2 W |
| Resistance | 10 mOhms |
| Size / Dimension [x] | 0.374 in |
| Size / Dimension [x] | 9.5 mm |
| Size / Dimension [y] | 3.15 mm |
| Size / Dimension [y] | 0.124 " |
| Supplier Device Package | 3812 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 2 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 1.47 | |
Description
General part information
BRS-N-R010-2.0
10 mOhms ±2% 2W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
