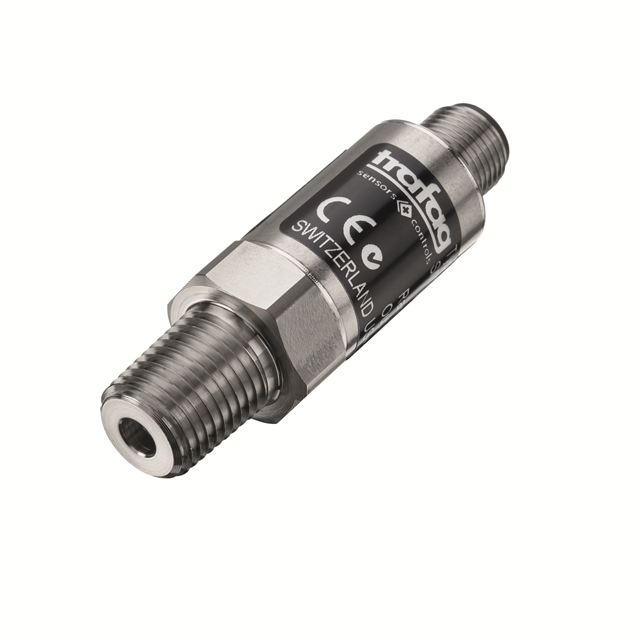

8252.G6.2530.32.19
ActiveTrafag Sensors and Controls
SENSOR 50PSIG 1/4"NPT .02A
Deep-Dive with AI
Search across all available documentation for this part.
8252.G6.2530.32.19
ActiveTrafag Sensors and Controls
SENSOR 50PSIG 1/4"NPT .02A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8252.G6.2530.32.19 |
|---|---|
| Accuracy | 0.5 % |
| Maximum Pressure [Max] | 1034.21 kPa |
| Maximum Pressure [Max] | 150 PSI |
| Operating Pressure | 50 PSI |
| Operating Pressure | 344.74 kPa |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Output Type | Analog Current |
| Package / Case | Cylinder, Threaded |
| Port Size [custom] | NPT |
| Port Size [custom] | Male |
| Port Size [x] | 0.25 " |
| Port Size [x] | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | M12x1, 4 Pin |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 148.95 | |
| 6 | $ 144.48 | |||
| 11 | $ 126.61 | |||
Description
General part information
8252.G6.2530.32.19
Pressure Sensor 50PSI (344.74kPa) Gauge Male - 1/4" (6.35mm) NPT 4 mA ~ 20 mA Cylinder, Threaded
