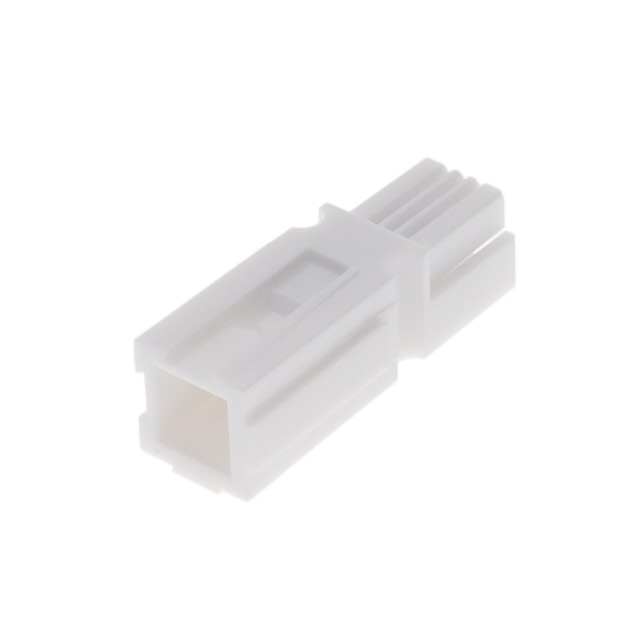

1327G7FP
ActiveAnderson Power Products, Inc.
CONN HSG 1POS WHITE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1327G7FP
ActiveAnderson Power Products, Inc.
CONN HSG 1POS WHITE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1327G7FP |
|---|---|
| Color | White |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Current Rating (Amps) | 55 A |
| Fastening Type | Spring Retention |
| Features | Stackable, Finger Proof |
| Material - Insulation | Polycarbonate |
| Material - Insulation | PC |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.56 | |
| 10 | $ 1.36 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.22 | |||
| 250 | $ 1.10 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.87 | |||
| 2500 | $ 0.81 | |||
Description
General part information
1327G7FP
1 Position Blade Type Power Housing Connector Non-Gendered, Self Mating White
