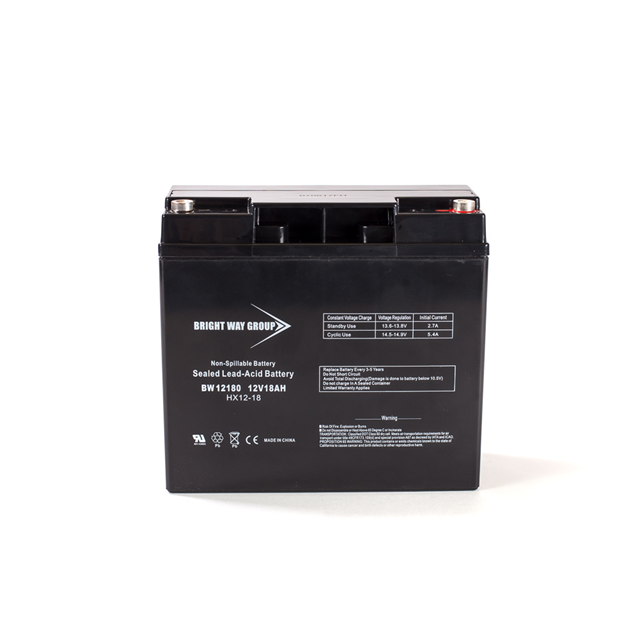

BW 12180 IT
ActiveContinental Battery Systems
BATTERY LEAD ACID 12V 18AH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BW 12180 IT
ActiveContinental Battery Systems
BATTERY LEAD ACID 12V 18AH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BW 12180 IT |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 18 Ah |
| Discharge Rate | 830 mA |
| Size / Dimension [x] | 181 mm |
| Size / Dimension [x] | 7.13 in |
| Size / Dimension [y] | 3.03 in |
| Size / Dimension [y] | 77 mm |
| Size / Dimension [z] | 6.57 in |
| Size / Dimension [z] | 167 mm |
| Standard Charge Current | 5.1 A |
| Standard Charge Time | 20 Hrs |
| Termination Style | Nut and Bolt, M5 |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 84.97 | |
Description
General part information
BW 12180 IT
12 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 18Ah
Documents
Technical documentation and resources
