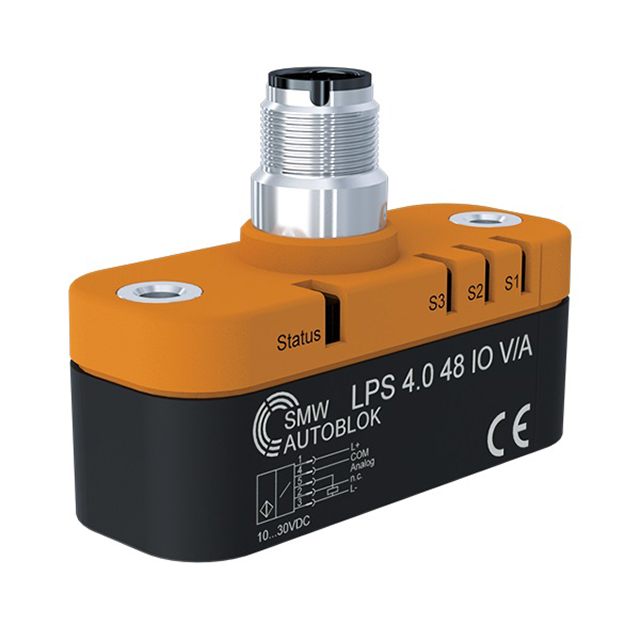

208108
ActiveSMW
LPS 4.0 48 IO 0-10V INDUCTIVE PO
Deep-Dive with AI
Search across all available documentation for this part.
208108
ActiveSMW
LPS 4.0 48 IO 0-10V INDUCTIVE PO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 208108 |
|---|---|
| Actuator Type | Slotted Shaft |
| For Measuring | Linear Position |
| Linear Range [Max] | 48 mm |
| Linear Range [Max] | 1.89 in |
| Linear Range [Min] | 0 in |
| Linear Range [Min] | 0 mm |
| Linearity | 0.2 % |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 10 °C |
| Output [Max] | 10 V |
| Output [Min] | 0 mV |
| Package / Case | Module |
| Technology | Inductive |
| Termination Style | Cable with Connector |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
208108
Inductive Sensor Linear Position Slotted Shaft Cable with Connector
Documents
Technical documentation and resources
No documents available
