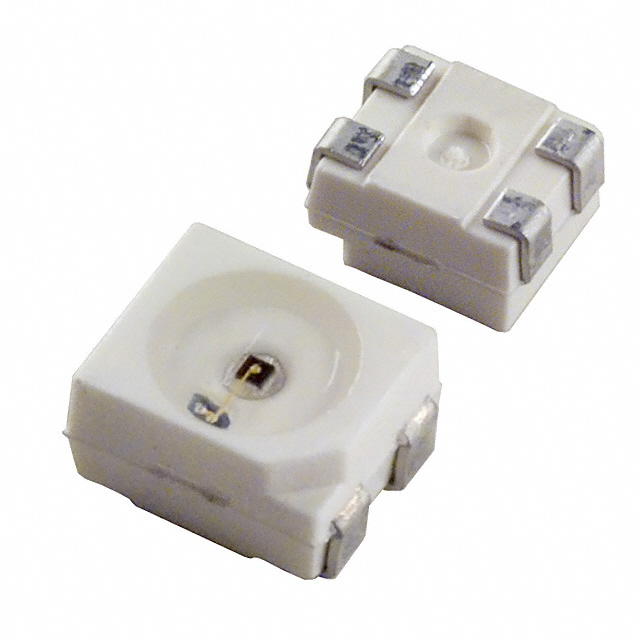

LB E67C-Q1S2-35-0-30-R18-Z
Obsoleteams-OSRAM USA INC.
LED BLUE CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LB E67C-Q1S2-35-0-30-R18-Z
Obsoleteams-OSRAM USA INC.
LED BLUE CLEAR 4PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LB E67C-Q1S2-35-0-30-R18-Z |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 30 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 175.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.9 V |
| Wavelength - Dominant | 469 nm |
| Wavelength - Peak | 464 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LB E67C-Q1S2-35-0-30-R18-Z
Blue 469nm LED Indication - Discrete 3.9V 4-PLCC
