83201430
ActiveMurrplastik Systems, Inc.

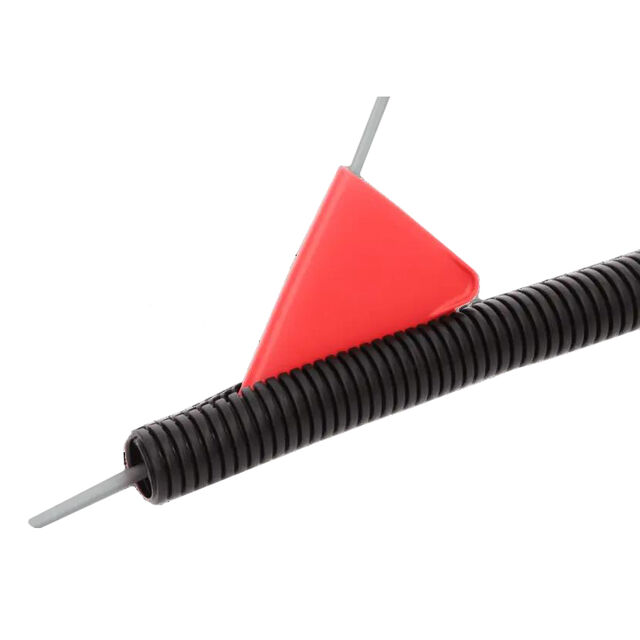

CORRUGATED CONDUIT, SLIT, ID: 34
Deep-Dive with AI
Search across all available documentation for this part.
83201430
ActiveMurrplastik Systems, Inc.
CORRUGATED CONDUIT, SLIT, ID: 34
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 83201430 |
|---|---|
| Color | Black |
| Diameter - Inside [diameter] | 1.374 in |
| Diameter - Inside [diameter] | 34.9 mm |
| Diameter - Outside [diameter] | 42.1 mm |
| Diameter - Outside [diameter] | 1.657 in |
| Environment Protection | UV Resistant |
| Length [x] | 82.02 ft |
| Length [x] | 25 m |
| Material | Polypropylene (PP), Halogen Free |
| Material Flammability Rating | UL94 HB |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Type | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Corrugated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 147.69 | |
Description
General part information
83201430
Black Polypropylene (PP), Halogen Free Convoluted, Corrugated Wire Loom, Protective Hose 1.374" (34.90mm) 82.02' (25.00m)
Documents
Technical documentation and resources
No documents available
