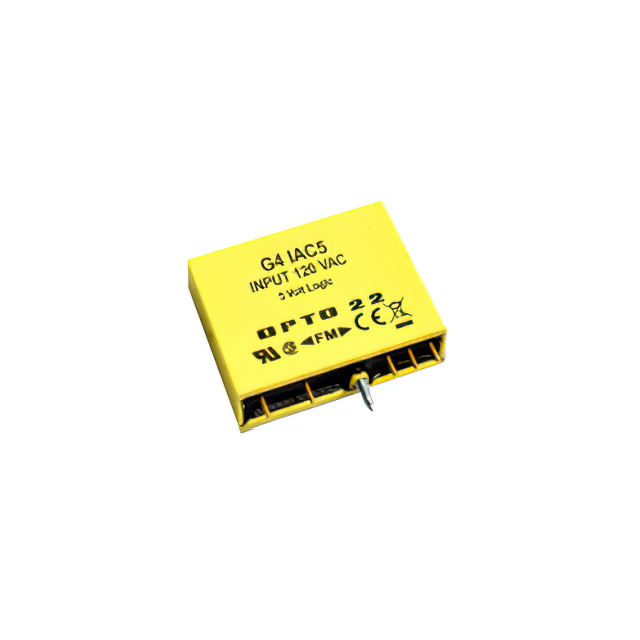

G4IAC5
ActiveOPTO 22
AC INPUT MODULE 90–140 VAC/VDC, 5 VDC LOGIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
G4IAC5
ActiveOPTO 22
AC INPUT MODULE 90–140 VAC/VDC, 5 VDC LOGIC
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | G4IAC5 |
|---|---|
| Color | Yellow |
| Current - Input | 5 mA |
| Current - Output | 15 mA |
| Features | Status LED(s), Hold Down Screw |
| Style | G4 |
| Turn Off Time | 20 ms |
| Turn On Time | 20 ms |
| Type | AC Input Module |
| Voltage - Input [Max] | 140 V |
| Voltage - Input [Min] | 90 V |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G4IAC5
The G4IAC5 is an 5mA AC Input Module used to detect on/off 90 to 140VAC/VDC with 5VDC logic voltage. It provides up to 4000V of optical isolation (transient) between field inputs and the logic output of the circuit. It is designed with filtering on the input and a hysteresis amplifier, providing high noise rejection and transient-free clean switching.
