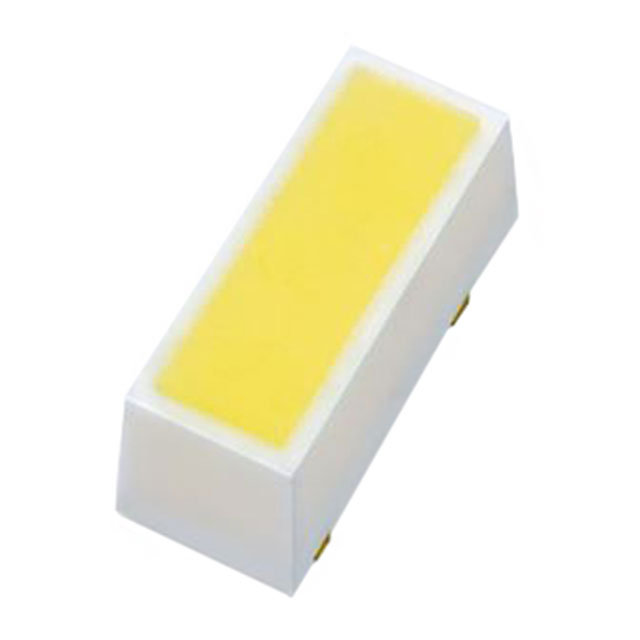

CLL620-0101B2-50AM1C5
ObsoleteCitizen Finedevice Co Ltd
LED COOL WHITE 5000K SMD
Deep-Dive with AI
Search across all available documentation for this part.
CLL620-0101B2-50AM1C5
ObsoleteCitizen Finedevice Co Ltd
LED COOL WHITE 5000K SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CLL620-0101B2-50AM1C5 |
|---|---|
| Color | Cool, White |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 90 mA |
| Current - Test | 80 mA |
| Flux @ 25°C, Current - Test | 28 lm |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Lumens/Watt @ Current - Test | 109 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 0803 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.032 in |
| Size / Dimension [y] | 0.8 mm |
| Thermal Resistance of Package [custom] | 90 °C/W |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CLL620-0101B2-50AM1C5
LED Lighting - White, Cool 5000K 3-Step MacAdam Ellipse 3.2V 80mA 0803 (2108 Metric)
Documents
Technical documentation and resources
No documents available
